Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,076HTML edition

← Chapter contents Manual collection

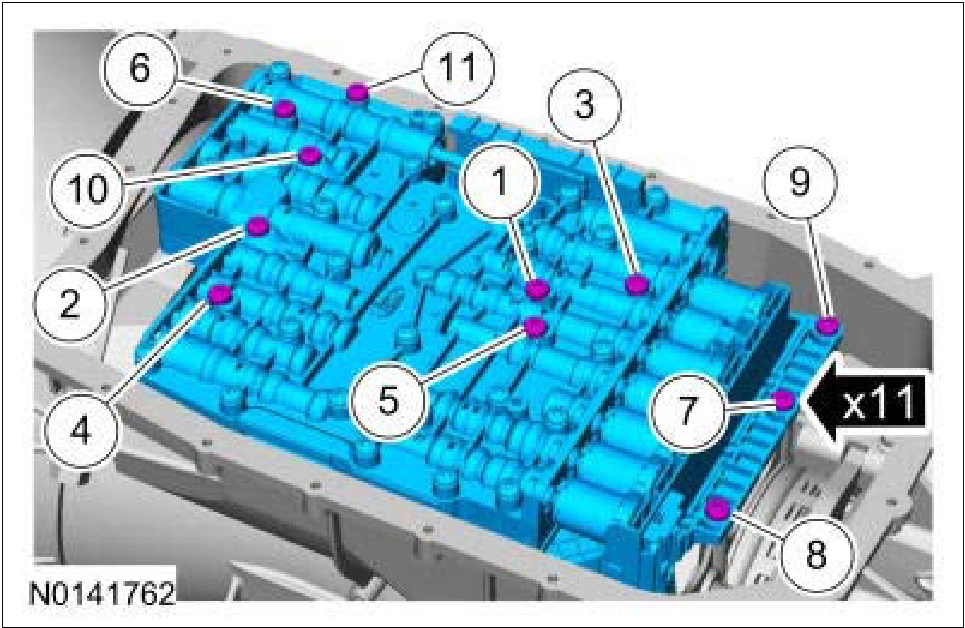

Fig 1: Main Control Assembly Bolts Tightening Sequence

Shift Solenoids (Ss) — original illustration 1, reference 9076Original colors & callouts · Select to enlarge

Courtesy of FORD MOTOR CO.

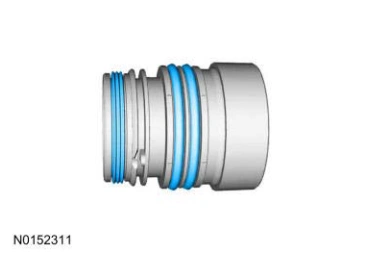

264. If removed, install the bulkhead connector sleeve seals.

Shift Solenoids (Ss) — original illustration 2, reference 9076Original colors & callouts · Select to enlarge

265. With the release tab up and unlocked, push the outer shell of the bulkhead electrical connector into the transmission. Make sure the bulkhead connector is fully seated into the molded leadframe. Press down on the tab and lock the outer shell of the bulkhead electrical connector in place. Make sure the locking tab is securely locked.
