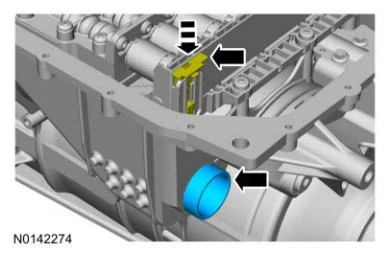

Shift Solenoids (Ss) — original illustration 1, reference 9077Original colors & callouts · Select to enlarge

266. Install a new transmission fluid filter.

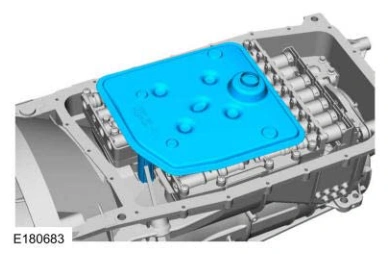

Shift Solenoids (Ss) — original illustration 2, reference 9077Original colors & callouts · Select to enlarge

NOTE: The fluid pan gasket can be reused if not damaged.

267. Install the transmission fluid pan gasket.

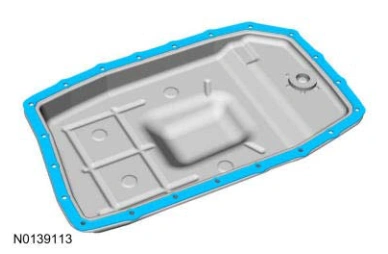

Shift Solenoids (Ss) — original illustration 3, reference 9077Original colors & callouts · Select to enlarge

268. Install the transmission fluid pan and transmission fluid pan bolts. Tighten in a crisscross pattern.

Torque

: 80 lb.in (9 Nm)
