Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,078HTML edition

← Chapter contents Manual collection

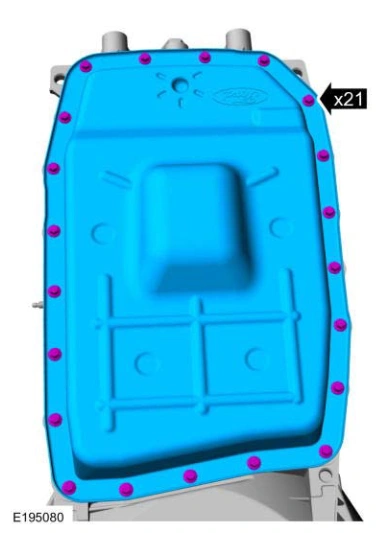

Shift Solenoids (Ss) — original illustration 1, reference 9078Original colors & callouts · Select to enlarge

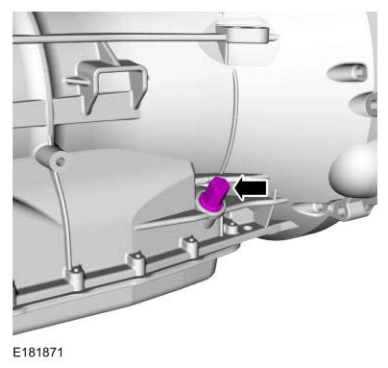

269. Install the transmission fluid fill plug.

Shift Solenoids (Ss) — original illustration 2, reference 9078Original colors & callouts · Select to enlarge

270. Using the special tool, install the torque converter. Use Special Service Tool: 307-091 Handle, Torque Converter.
