Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,073HTML edition

Shift Solenoids (Ss) — original illustration 1, reference 9073Original colors & callouts · Select to enlarge

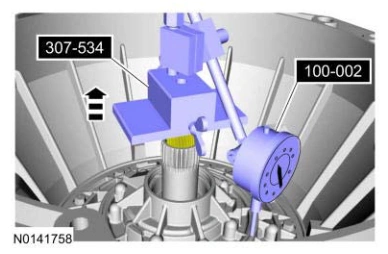

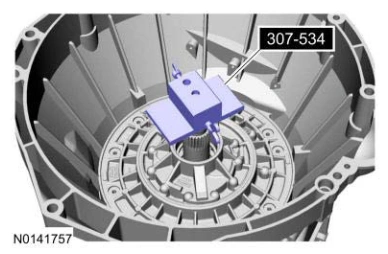

257. Install the special tools. Push down on the Transmission End Play Gauge and zero the dial indicator. Lift up on the Transmission End Play Gauge and record the measurement on the dial indicator. The specification should be between 0.2-0.4 mm. If the Measurement is not within specification, remove the pump and install a new selective shim. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge., 307-534 End Play Gauge, Transmission.

Shift Solenoids (Ss) — original illustration 2, reference 9073Original colors & callouts · Select to enlarge

NOTE: The green (7G087) center support feed tube seal may be replaced with an orange (7G087) center support feed tube seal.

258.

1. Install a new center support feed tube seal (7G199 Black).

2. Install a new center support feed tube seal (7G087 Green or Orange).

3. Install a new center support feed tube seal (7G084 Blue).
