Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,060HTML edition
← Chapter contentsManual collection

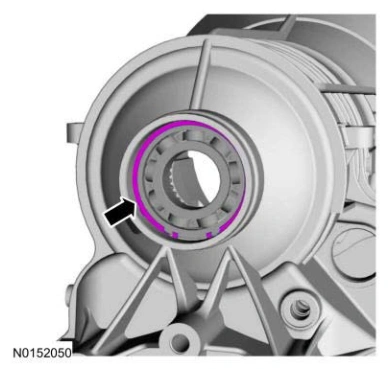

Shift Solenoids (Ss) — original illustration 1, reference 9060Original colors & callouts · Select to enlarge

224. Install the T11 bearing, on the planetary ring gear and output shaft assembly.

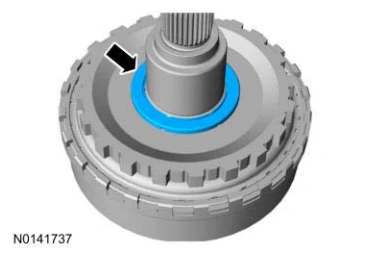

Shift Solenoids (Ss) — original illustration 2, reference 9060Original colors & callouts · Select to enlarge

225. Install the rear planetary ring gear and output shaft assembly.

Shift Solenoids (Ss) — original illustration 3, reference 9060Original colors & callouts · Select to enlarge

226. Install the T10 thrust bearing on the output shaft assembly.
