Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,059HTML edition

Shift Solenoids (Ss) — original illustration 1, reference 9059Original colors & callouts · Select to enlarge

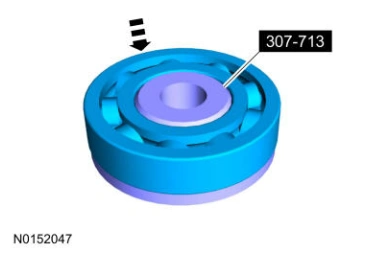

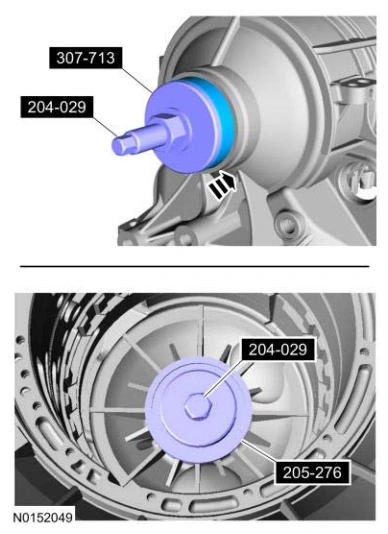

222. Assemble the special tools and install the bearing in the transmission case. Use Special Service Tool: 204-029 Drawbar., 205-276 Installer, Front Wheel Hub Seal., 307-713 Installer, Roller Bearing.

Shift Solenoids (Ss) — original illustration 2, reference 9059Original colors & callouts · Select to enlarge

223. Install the snap ring.
