Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,021HTML edition

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

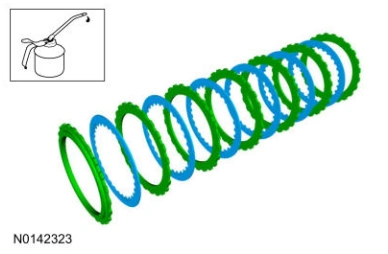

Shift Solenoids (Ss) — original illustration 1, reference 9021Original colors & callouts · Select to enlarge

117. Install the overdrive clutch plates, starting with a steel plate and alternating between friction and steel plates and ending with the pressure plate on the top.

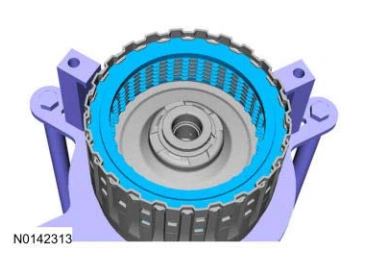

Shift Solenoids (Ss) — original illustration 2, reference 9021Original colors & callouts · Select to enlarge

118. Install the overdrive clutch pack snap ring.

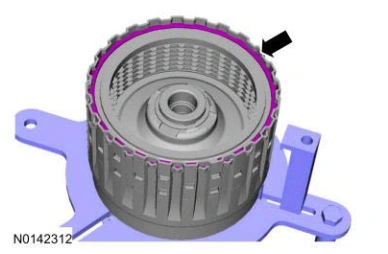

Shift Solenoids (Ss) — original illustration 3, reference 9021Original colors & callouts · Select to enlarge

119. Install the overdrive assembly on the Clutch End Play Gauge and install the dial indicator gauge. Position the plunger so it fits into the opening of the snap ring. With the dial indicator set at zero, lift up on the steel pressure plate so it is against the select fit snap ring. Record this reading as reading A. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge., 307-555 End Play Gauge, Clutch.
