Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,019HTML edition

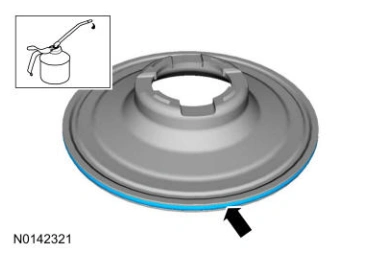

Shift Solenoids (Ss) — original illustration 1, reference 9019Original colors & callouts · Select to enlarge

111. Install a new outer O-ring seal on the overdrive clutch balance piston. Lightly coat the O-ring seals with clean transmission fluid.

Material

: Motorcraft ® MERCON ® LV Automatic Transmission Fluid (U.S.) / XT-10-QLVC (U.S.) (MERCON ® LV) (WSS-M2C938-A)

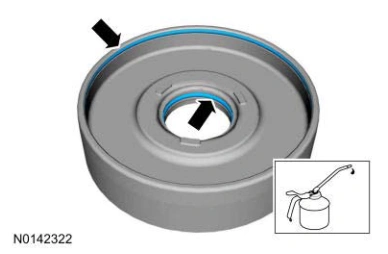

Shift Solenoids (Ss) — original illustration 2, reference 9019Original colors & callouts · Select to enlarge

112. Install the overdrive clutch apply piston into the drum with the O-ring seals and the 3 pads facing down.

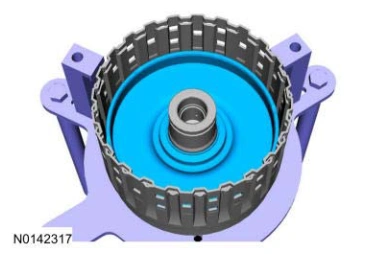

Shift Solenoids (Ss) — original illustration 3, reference 9019Original colors & callouts · Select to enlarge

NOTE: The fingers on the return spring are facing down toward the piston.

113. Install the overdrive clutch return spring.
