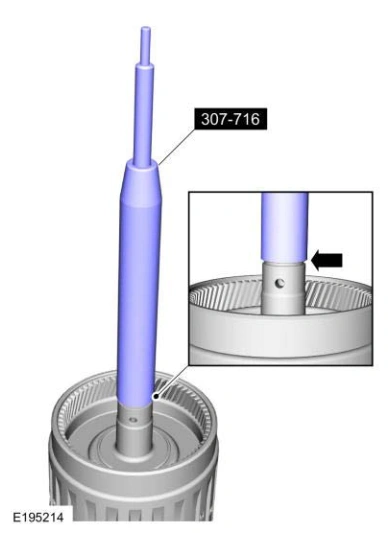

Install the special tool and adjust the special tool to align the bottom edge of the tool with the top edge of the bottom Teflon ® seal groove. Use Special Service Tool: 307-716 Installer, Teflon Seal.

Shift Solenoids (Ss) — original illustration 1, reference 9017Original colors & callouts · Select to enlarge

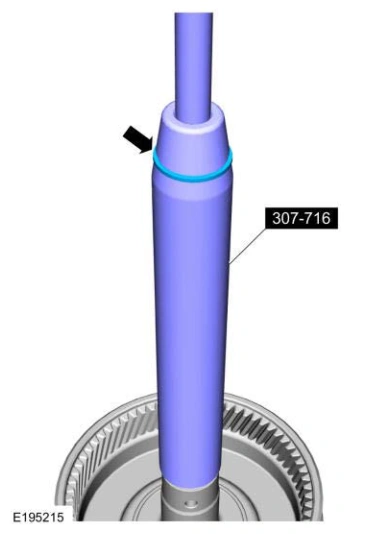

107. Install a new Teflon ® seal on the special tool.Use Special Service Tool: 307-716 Installer, Teflon Seal.

Shift Solenoids (Ss) — original illustration 2, reference 9017Original colors & callouts · Select to enlarge

108. Using the top half of the special tool, slide the Teflon ® seal into the groove. Remove the special
