Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 9,015HTML edition
← Chapter contentsManual collection

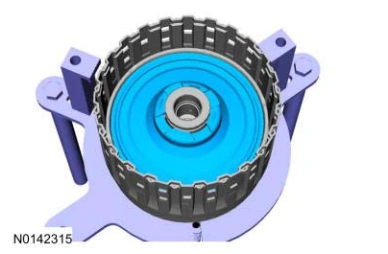

Shift Solenoids (Ss) — original illustration 1, reference 9015Original colors & callouts · Select to enlarge

101. Remove the overdrive clutch return spring.

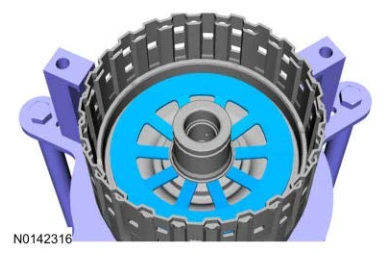

Shift Solenoids (Ss) — original illustration 2, reference 9015Original colors & callouts · Select to enlarge

102. Remove the overdrive clutch apply piston.

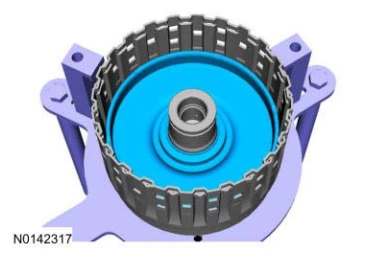

Shift Solenoids (Ss) — original illustration 3, reference 9015Original colors & callouts · Select to enlarge

103. Remove and discard the overdrive clutch balance piston O-ring seal.
