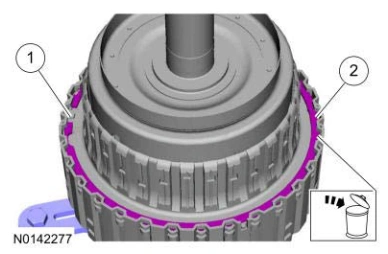

the snap ring.

Shift Solenoids (Ss) — original illustration 1, reference 9000Original colors & callouts · Select to enlarge

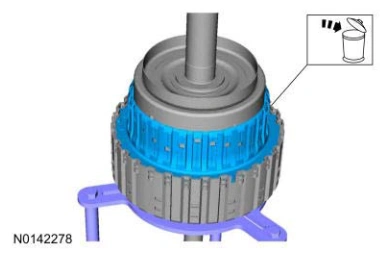

56. Remove and discard the direct clutch hub.

Shift Solenoids (Ss) — original illustration 2, reference 9000Original colors & callouts · Select to enlarge

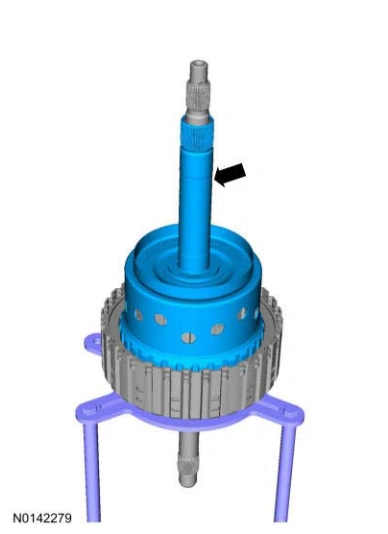

57. Remove the forward clutch and sun shaft assembly.

Shift Solenoids (Ss) — original illustration 3, reference 9000Original colors & callouts · Select to enlarge
