Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,997HTML edition
← Chapter contentsManual collection
Shift Solenoids (Ss) — original illustration 1, reference 8997Original colors & callouts · Select to enlarge

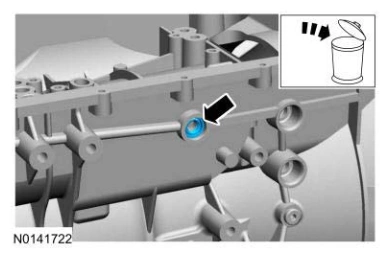

50. Remove the bolt from the back of the case to access to the park pawl pin.

Shift Solenoids (Ss) — original illustration 2, reference 8997Original colors & callouts · Select to enlarge

51.

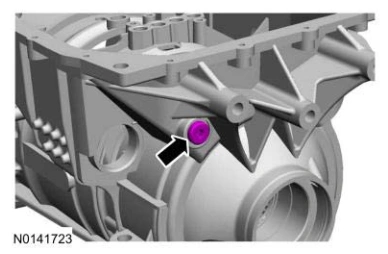

1. Push the park pawl pin out toward the back side of the case and remove the pin.

2. Remove the park pawl return spring.

3. Remove the park pawl.

Ford_Mustang_all_2015-2017.pdf · source reference 8997
