Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,994HTML edition

Shift Solenoids (Ss) — original illustration 1, reference 8994Original colors & callouts · Select to enlarge

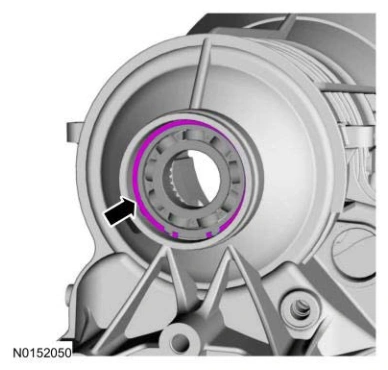

43. Remove the output shaft ball bearing snap ring.

Shift Solenoids (Ss) — original illustration 2, reference 8994Original colors & callouts · Select to enlarge

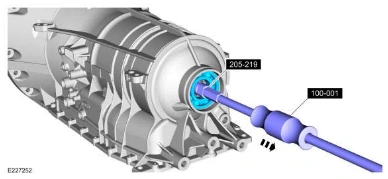

44. Using the special tools, remove the output shaft ball bearing. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer., 205-219 (T85L-1225-AH) Remover, Axle Bearing.

Shift Solenoids (Ss) — original illustration 3, reference 8994Original colors & callouts · Select to enlarge
