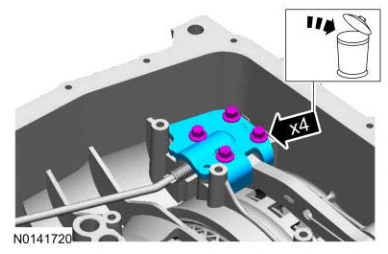

Shift Solenoids (Ss) — original illustration 1, reference 8996Original colors & callouts · Select to enlarge

48.

1. Remove and discard the roll pin.

2. Hold the manual control lever spacer to keep it from falling into the case.

3. Slide the manual control lever shaft out of the case.

Remove the manual valve detent lever and park pawl actuator rod as an assembly.

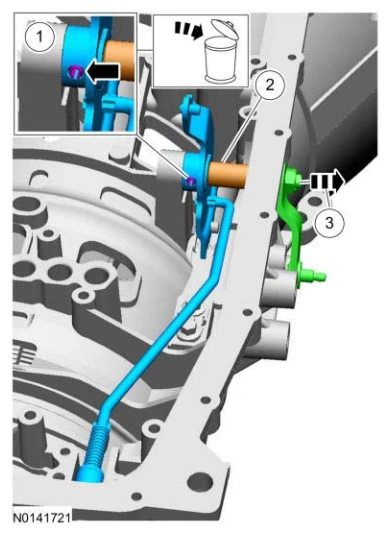

Shift Solenoids (Ss) — original illustration 2, reference 8996Original colors & callouts · Select to enlarge

49. Remove and discard the manual control lever shaft seal.

Ford_Mustang_all_2015-2017.pdf · source reference 8996
