Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,992HTML edition

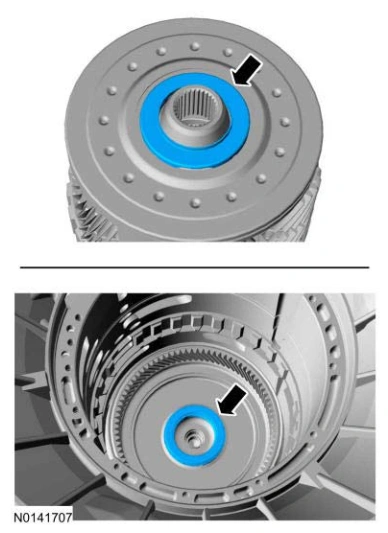

Shift Solenoids (Ss) — original illustration 1, reference 8992Original colors & callouts · Select to enlarge

NOTE: The output shaft flange retaining nut has been staked to prevent it from coming loose. Prior to removing the nut, remove the stake to prevent damage to the output shaft.

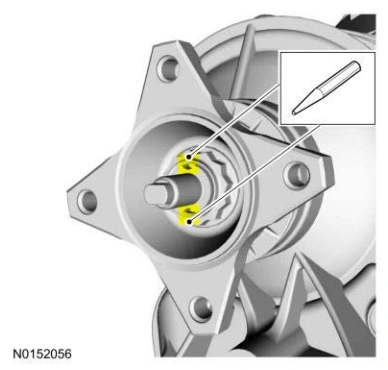

38. Remove the stakes from the output shaft flange retaining nut. Use the General Equipment: Punch

Shift Solenoids (Ss) — original illustration 2, reference 8992Original colors & callouts · Select to enlarge

39. Place the manual control lever in the PARK position and remove and discard the output shaft flange retaining nut.
