NOTE: Some of the clutch plates may stay in the case when removing the planetary carrier and the low/reverse clutch pack. Remove any clutch plates from the transmission that were not removed with the carrier and keep the clutch plates together.

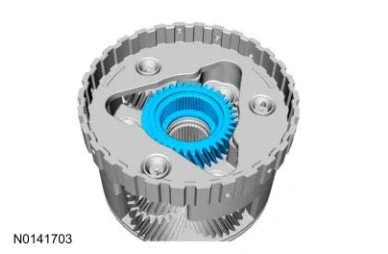

32. Remove the planetary carrier and the low/reverse clutch pack as an assembly. Inspect the clutch plates for excessive wear or damage. If the clutch plates are excessively worn or damaged replace as necessary. If the clutch plates are not excessively worn or damaged, they can be reused.

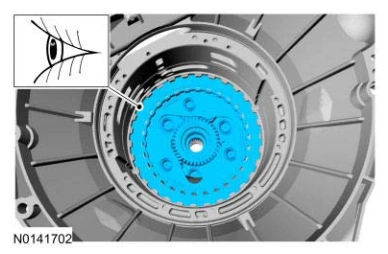

33. Remove the No. 2 sun gear and race.
NOTE: When removing the sun gear, note that the tapered edge is facing up toward the torque converter housing.
