Shift Solenoids (Ss) — Installation Overhaul — Main Control Valve Body Overhaul — Transmission

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,988HTML edition

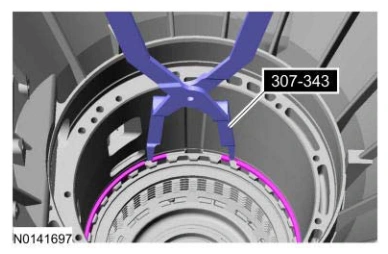

Shift Solenoids (Ss) — original illustration 1, reference 8988Original colors & callouts · Select to enlarge

27. Using the special tools, remove the center support snap ring.Use Special Service Tool: 307-343 Retaining Ring Pliers.

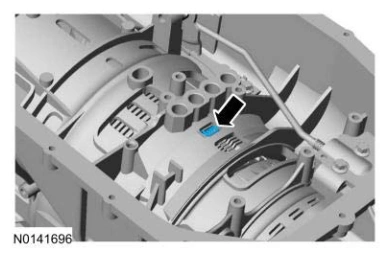

Shift Solenoids (Ss) — original illustration 2, reference 8988Original colors & callouts · Select to enlarge

28. Remove the center support and T6 bearing.

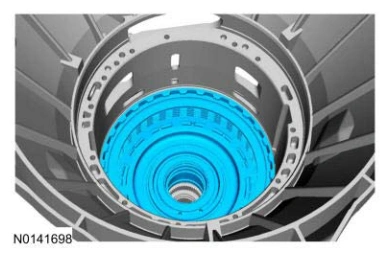

Shift Solenoids (Ss) — original illustration 3, reference 8988Original colors & callouts · Select to enlarge

NOTE: When removing the one-way clutch, note the position for assembly.

29. Remove the one-way clutch.
