Measure:

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C3265A-J		C3034-1
C3265A-K		C3034-2

Are the resistances less than 3 ohms?

Yes	GO to M2
No	REPAIR the circuit(s) in question. GO to M5

M2 CHECK BLOWER MOTOR CIRCUITS FOR A SHORT TO VOLTAGE

Ignition ON. Measure:

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C3265A-G		Ground
C3265A-H		Ground
C3265A-J		Ground
C3265A-K		Ground

Is any voltage present?

Yes	REPAIR the circuit(s) in question. GO to M5
No	GO to M3

M3 CHECK BACKREST AND CUSHION BLOWER MOTOR RESISTANCES

Measure the component side resistance between:

Positive Lead	Measurement / Action	Negative Lead

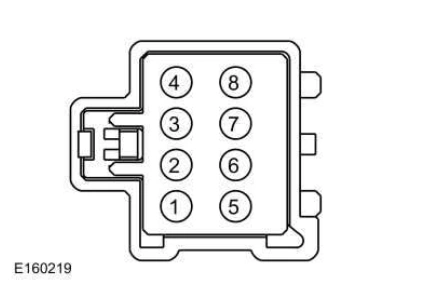

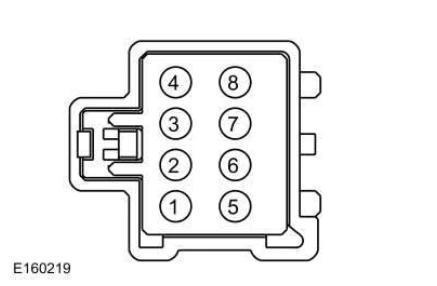

C3034-1, Component Side Front Seats — original illustration 1, reference 1022Original colors & callouts · Select to enlarge		C3034-2, Component Side Front Seats — original illustration 2, reference 1022Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

C3034-1, Component Side

Front Seats — original illustration 1, reference 1022Original colors & callouts · Select to enlarge

C3034-2, Component Side

Front Seats — original illustration 2, reference 1022Original colors & callouts · Select to enlarge

Measure the component side resistance between:

Positive Lead

Measurement /

Action

Negative Lead
