2016 workshop · Body & Paint

Front Seats

501-10A Front Seats

2016 MustangReference 1,019 / 6,619HTML edition
← Chapter contentsProcedure contents

Positive Lead

Measurement /

Action

Negative Lead

C3034-1, Component Side

Front Seats — original illustration 1, reference 1019Original colors & callouts · Select to enlarge

C3034-2, Component Side

Front Seats — original illustration 2, reference 1019Original colors & callouts · Select to enlarge

Is the resistance between 0.9 and 10 ohms?

Yes

REPAIR the circuit(s) in question. GO to L11

No

INSTALL a new backrest blower motor. REFER to: Front Seat Backrest Blower Motor (501-10 Front Seats) . GO to L11

L5 CHECK CUSHION BLOWER MOTOR RESISTANCE

Disconnect: Driver Seat Cushion Blower Motor C3035. Measure the component side resistance between:

Positive Lead

Measurement /

Action

Negative Lead

C3035-1, Component Side

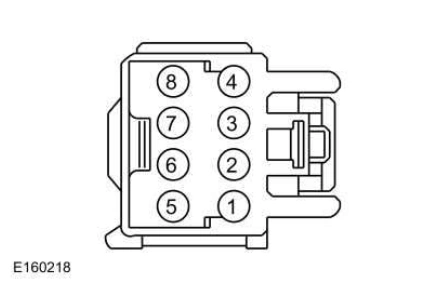

Front Seats — original illustration 3, reference 1019Original colors & callouts · Select to enlarge

C3035-2, Component Side

Front Seats — original illustration 4, reference 1019Original colors & callouts · Select to enlarge

Is the resistance between 0.9 and 10 ohms?

Yes

REPAIR the circuit(s) in question. GO to L11

No

INSTALL a new cushion blower motor. REFER to: Front Seat Cushion Blower Motor (501-10A Front Seats, Removal and Installation). GO to L11

L6 CHECK THE CUSHION BLOWER MOTOR CIRCUITS FOR A SHORT TO GROUND

Disconnect: Driver Seat Cushion Blower Motor C3035. Measure:

Click to display connectors

Positive Lead

Measurement / Action

Negative Lead

C3265A-G

Ground

C3265A-H

Ground

Are the resistances greater than 10,000 ohms?
