Disconnect: Passenger Seat Cushion Blower Motor C3040. Measure the component side resistance between:

Positive Lead	Measurement / Action	Negative Lead

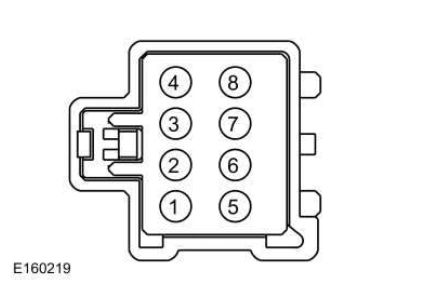

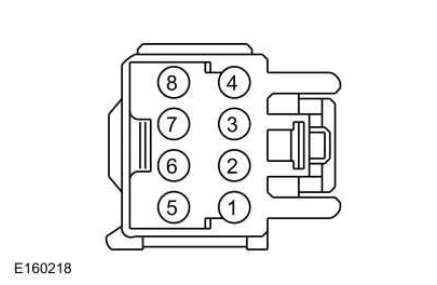

C3040-1, Component Side Front Seats — original illustration 1, reference 1028Original colors & callouts · Select to enlarge		C3040-2, Component Side Front Seats — original illustration 2, reference 1028Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

C3040-1, Component Side

Front Seats — original illustration 1, reference 1028Original colors & callouts · Select to enlarge

C3040-2, Component Side

Front Seats — original illustration 2, reference 1028Original colors & callouts · Select to enlarge

Is the resistance between 0.9 and 10 ohms?

Yes	REPAIR the circuit(s) in question. GO to O11
No	INSTALL a new cushion blower motor. REFER to: Front Seat Cushion Blower Motor (501-10A Front Seats, Removal and Installation). GO to O11

O6 CHECK THE CUSHION BLOWER MOTOR CIRCUITS FOR A SHORT TO GROUND

Disconnect: Passenger Seat Cushion Blower Motor C3040. Measure:

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C3265A-A		Ground
C3265A-B		Ground

Are the resistances greater than 10,000 ohms?

Yes	INSTALL a new cushion blower motor. REFER to: Front Seat Cushion Blower Motor (501-10A Front Seats, Removal and Installation). GO to O11
No	REPAIR the circuit in question. GO to O11

O7 CHECK THE BACKREST BLOWER MOTOR CIRCUITS FOR A SHORT TO GROUND

Disconnect: Passenger Seat Backrest Blower Motor C3039. Measure:

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C3265A-C		Ground
C3265A-D		Ground

Are the resistances greater than 10,000 ohms?

Yes	INSTALL a new backrest blower motor. REFER to: Front Seat Backrest Blower Motor (501-10 Front Seats) . GO to O11
No	REPAIR the circuit in question. GO to O11

O8 CHECK THE CUSHION BLOWER MOTOR CIRCUITS FOR A SHORT TO VOLTAGE

Disconnect: Passenger Seat Cushion Blower Motor C3040. Ignition ON. Measure:
