Front Seats — 2016 workshop reference 1031

Yes	REPAIR the circuit(s) in question. GO to P5
No	GO to P3

P3 CHECK BACKREST AND CUSHION BLOWER MOTOR RESISTANCES

Disconnect: Passenger Seat Backrest Blower Motor C3039. Measure the component side resistance between:

Positive Lead	Measurement / Action	Negative Lead
C3039-1, Component Side Front Seats — original illustration 1, reference 1031Original colors & callouts · Select to enlarge		C3039-2, Component Side Front Seats — original illustration 2, reference 1031Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

C3039-1, Component Side

Front Seats — original illustration 1, reference 1031Original colors & callouts · Select to enlarge

C3039-2, Component Side

Front Seats — original illustration 2, reference 1031Original colors & callouts · Select to enlarge

Measure the component side resistance between:

Positive Lead	Measurement / Action	Negative Lead
C3040-1, Component Side Front Seats — original illustration 3, reference 1031Original colors & callouts · Select to enlarge		C3040-2, Component Side Front Seats — original illustration 4, reference 1031Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

C3040-1, Component Side

Front Seats — original illustration 3, reference 1031Original colors & callouts · Select to enlarge

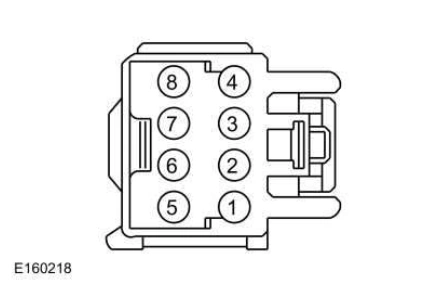

C3040-2, Component Side

Front Seats — original illustration 4, reference 1031Original colors & callouts · Select to enlarge

Are the resistances between 0.9 and 10 ohms?

Yes	GO to P4
No	If the backrest blower motor resistance measurement failed, INSTALL a new backrest blower motor. REFER to: Front Seat Backrest Blower Motor (501-10 Front Seats) . GO to P5 If the cushion blower motor resistance measurement failed, INSTALL a new cushion blower motor. REFER to: Front Seat Cushion Blower Motor (501-10A Front Seats, Removal and Installation). GO to P5

P4 CHECK THE SCME (FRONT SEAT CLIMATE CONTROL MODULE) OPERATION

Ignition OFF. Disconnect and inspect all of the SCME connectors. Repair:

corrosion (install new connector or terminals - clean module pins) damaged or bent pins - install new terminals/pins as necessary pushed-out pins - install new pins as necessary

Reconnect the SCME connectors. Make sure they seat and latch correctly.

NOTE: Do not reconnect Passenger Side Airbag In-line C219 at this time. Reconnect all previously disconnected connectors. Ignition ON. Operate the system and determine if the concern is still present.
