Front Seats

501-10A Front Seats

2016 MustangReference 1,033 / 6,619HTML edition
← Chapter contentsProcedure contents

Is the resistance greater than 10,000 ohms?

Yes

GO to Q2

No

REPAIR the circuit. GO to Q5

Q2 CHECK THE BLOWER MOTOR FEED CIRCUITS FOR A SHORT TOGETHER

Ignition ON. Measure:

Click to display connectors

Positive Lead

Measurement / Action

Negative Lead

C3265C-7

C3265C-8

Is the resistance greater than 10,000 ohms?

Yes

GO to Q3

No

REPAIR the circuits. GO to Q5

Q3 CHECK THE BACKREST BLOWER AND CUSHION BLOWER RESISTANCES

NOTE: The ohmmeter must be connected with the positive lead to pin 3 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected will result in false readings and lead to incorrect identification of components that are not faulty. Measure the component side resistance between:

Positive Lead

Measurement /

Action

Negative Lead

C3040-3, Component Side

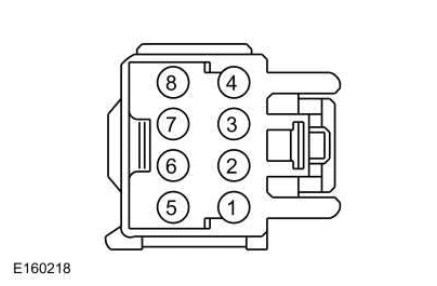

Front Seats — original illustration 1, reference 1033Original colors & callouts · Select to enlarge

C3040-4, Component Side

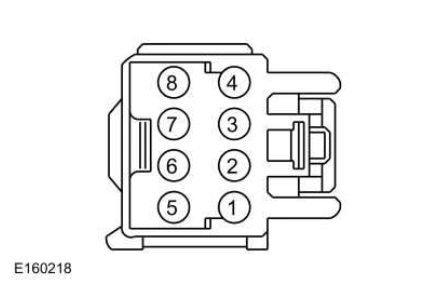

Front Seats — original illustration 2, reference 1033Original colors & callouts · Select to enlarge

NOTE: The ohmmeter must be connected with the positive lead to pin 3 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected will result in false readings and lead to incorrect identification of components that are not faulty. Measure the component side resistance between:

Positive Lead

Measurement /

Action

Negative Lead

C3039-3, Component Side

Front Seats — original illustration 3, reference 1033Original colors & callouts · Select to enlarge

C3039-4, Component Side

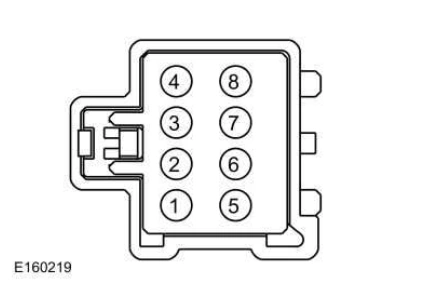

Front Seats — original illustration 4, reference 1033Original colors & callouts · Select to enlarge

Are the resistances between 4000 and 10,000 ohms?

Source reference 1033
