Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265A-J | Ground |
Is the resistance greater than 10,000 ohms?
Yes | GO to AB8 |
|---|---|
No | REPAIR the circuit. GO to AB36 |
AB8 CHECK THE RESISTANCE OF THE BACKREST BLOWER MOTOR THERMO ELECTRIC DEVICE AND WIRING
Measure:

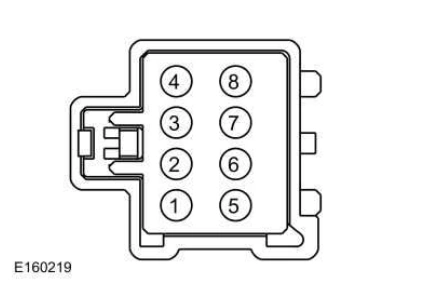

Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265A-J | Ground | |
C3265A-K | Ground |
Are the resistances between 0.9 and 10 ohms?
Yes | GO to AB10 |
|---|---|
No | GO to AB9 |
AB9 CHECK THE RESISTANCE OF THE BACKREST BLOWER MOTOR THERMO ELECTRIC DEVICE
Disconnect: Driver Seat Backrest Blower Motor C3034. Measure the component side resistance between:
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3034-1, Component Side | C3034-2, Component Side |
Is the resistance less than 3 ohms?
Yes | REPAIR circuit CHS01 (GY/VT) or RHS01 (WH/VT) for an open or high resistance. GO to AB36 |
|---|---|
No | INSTALL a new backrest blower motor. REFER to: Front Seat Backrest Blower Motor (501-10 Front Seats) . GO to AB36 |
AB10 CHECK BLOWER CIRCUIT AND SPEED CONTROL CIRCUIT FOR A SHORT TO VOLTAGE
Disconnect: SCME C3265C. Ignition ON. Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265C-16 | Ground | |
C3265C-11 | Ground |
