No | INSTALL a new driver seat cushion blower motor. REFER to: Front Seat Cushion Blower Motor (501-10A Front Seats, Removal and Installation). GO to AB36 |
|---|
AB14 CHECK THE BLOWER SPEED CONTROL AND CIRCUIT RESISTANCE
NOTE: The ohmmeter must be connected with the positive lead to pin 11 and the negative lead to pin 15 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265C-11 | C3265C-15 |
Is the resistance between 240K and 400K ohms?
Yes | GO to AB16 |
|---|---|
No | GO to AB15 |
AB15 CHECK THE BLOWER SPEED CONTROL RESISTANCE

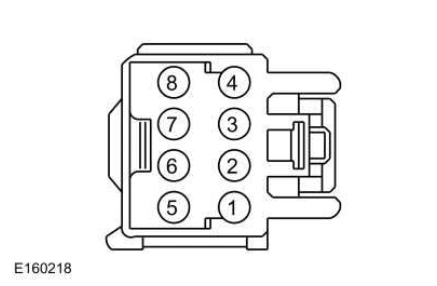

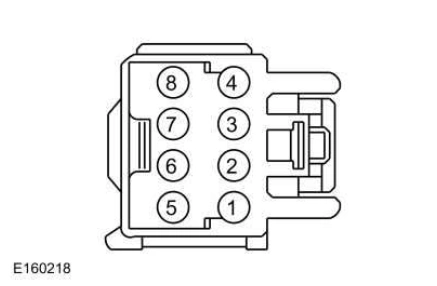

Disconnect: Driver Seat Cushion Blower Motor C3035.
NOTE: The ohmmeter must be connected with the positive lead to pin 7 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure the component side resistance between:
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3035-7, Component Side | C3035-4, Component Side |
Is the resistance between 240K and 400K ohms?
Yes | REPAIR the circuit in question. GO to AB36 |
|---|---|
No | INSTALL a new driver seat cushion blower motor. REFER to: Front Seat Cushion Blower Motor (501-10A Front Seats, Removal and Installation). GO to AB36 |
AB16 CHECK THERMISTOR CIRCUIT FOR A SHORT TO VOLTAGE
REFER to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures). Disconnect: Driver Side Airbag In-line C345. Disconnect: Passenger Side Airbag In-line C219. Disconnect: SCME C3265B. Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265B-7 | Ground |
Is any voltage present?
Yes | REPAIR the circuit. GO to AB36 |
|---|
