Is any voltage present?
Yes | REPAIR the circuit in question. GO to AB36 |
|---|---|
No | GO to AB11 |
AB11 CHECK BLOWER AND SPEED CONTROL CIRCUITS FOR A SHORT TO GROUND
Ignition OFF. Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265C-16 | Ground | |
C3265C-11 | Ground |
Are the resistances greater than 10,000 ohms?
Yes | GO to AB12 |
|---|---|
No | REPAIR the circuit in question. GO to AB36 |
AB12 CHECK THE BLOWER AND WIRING
NOTE: The ohmmeter must be connected with the positive lead to pin 16 and the negative lead to pin 15 when measuring. Ohmmeter leads incorrectly connected will result in false readings and lead to incorrect identification of components that are not faulty. Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265C-16 | C3265C-15 |
Is the resistance between 4,000 and 10,000 ohms?
Yes | GO to AB14 |
|---|---|
No | GO to AB13 |
AB13 CHECK THE BLOWER RESISTANCE

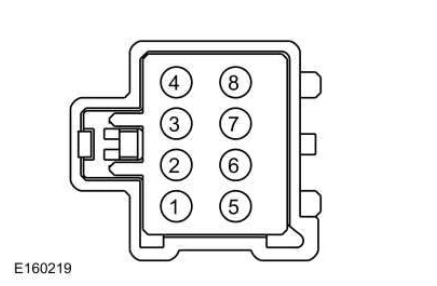

Disconnect: Driver Seat Cushion Blower Motor C3035.
NOTE: The ohmmeter must be connected with the positive lead to pin 3 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure the component side resistance between:
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3035-3, Component Side | C3035-4, Component Side |
Is the resistance between 4,000 and 10,000 ohms?
Yes | REPAIR the circuit in question. GO to AB36 |
|---|
