AB23 CHECK THE RESISTANCE OF THE CUSHION BLOWER MOTOR AND WIRING
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265A-G | C3265A-H |
Is the resistance between 0.9 and 10 ohms?
Yes | GO to AB25 |
|---|---|
No | GO to AB24 |
AB24 CHECK THE CUSHION BLOWER MOTOR RESISTANCE
Disconnect: Driver Seat Cushion Blower Motor C3035. Measure the component side resistance between:
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3035-1, Component Side | C3035-2, Component Side |
Is the resistance between 0.9 and 10 ohms?
Yes | REPAIR the circuit(s) in question. GO to AB36 |
|---|---|
No | INSTALL a new driver seat cushion blower motor. REFER to: Front Seat Cushion Blower Motor (501-10A Front Seats, Removal and Installation). GO to AB36 |
AB25 CHECK BLOWER CIRCUIT AND SPEED CONTROL CIRCUIT FOR A SHORT TO VOLTAGE
Disconnect: SCME C3265C. Ignition ON. Measure:

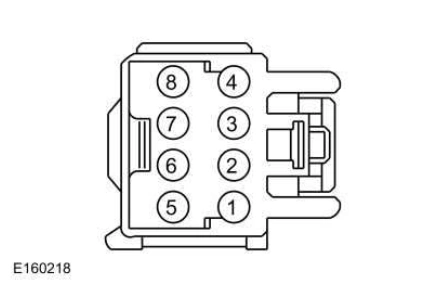

Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265C-16 | Ground | |
C3265C-12 | Ground |
Is any voltage present?
Yes | REPAIR the circuit in question. GO to AB36 |
|---|---|
No | GO to AB26 |
AB26 CHECK BLOWER AND SPEED CONTROL CIRCUITS FOR A SHORT TO GROUND
Ignition OFF. Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265C-16 | Ground |
