Front Seats — 2016 workshop reference 1072

Positive Lead	Measurement / Action	Negative Lead
C3265C-12		Ground

Are the resistances greater than 10,000 ohms?

Yes	GO to AB27
No	REPAIR the circuit in question. GO to AB36

AB27 CHECK THE BLOWER AND WIRING RESISTANCE

NOTE: The ohmmeter must be connected with the positive lead to pin 16 and the negative lead to pin 15 when measuring. Ohmmeter leads incorrectly connected will result in false readings and lead to incorrect identification of components that are not faulty. Measure:

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C3265C-16		C3265C-15

Is the resistance between 4,000 and 10,000 ohms?

Yes	GO to AB29
No	GO to AB28

AB28 CHECK THE BLOWER RESISTANCE

Disconnect: Driver Seat Backrest Blower Motor C3034.

NOTE: The ohmmeter must be connected with the positive lead to pin 3 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure the component side resistance between:

Positive Lead	Measurement / Action	Negative Lead
C3034-3, Component Side Front Seats — original illustration 1, reference 1072Original colors & callouts · Select to enlarge		C3034-4, Component Side Front Seats — original illustration 2, reference 1072Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

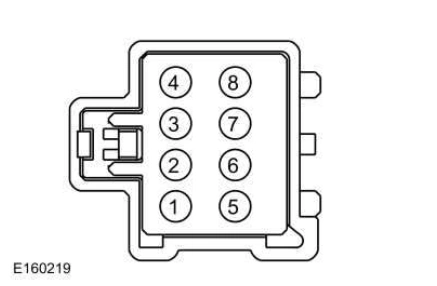

C3034-3, Component Side

Front Seats — original illustration 1, reference 1072Original colors & callouts · Select to enlarge

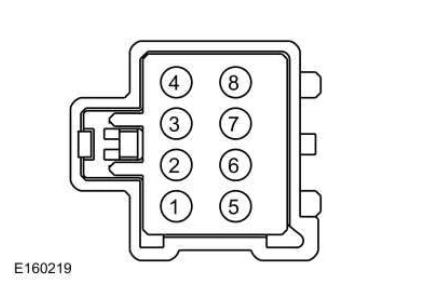

C3034-4, Component Side

Front Seats — original illustration 2, reference 1072Original colors & callouts · Select to enlarge

Is the resistance between 4,000 and 10,000 ohms?

Yes	REPAIR the circuit(s) in question. GO to AB36
No	INSTALL a new backrest blower motor. REFER to: Front Seat Backrest Blower Motor (501-10 Front Seats) . GO to AB36

AB29 CHECK THE BLOWER SPEED CONTROL AND CIRCUIT RESISTANCE

NOTE: The ohmmeter must be connected with the positive lead to pin 12 and the negative lead to pin 15 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure:

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C3265C-12		C3265C-15
