Are the resistances between 0.9 and 10 ohms?
Yes | GO to AF21 |
|---|---|
No | GO to AF20 |
AF20 CHECK THE RESISTANCE OF THE DRIVER SEAT CUSHION BLOWER MOTOR

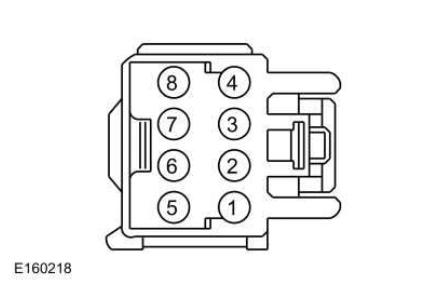

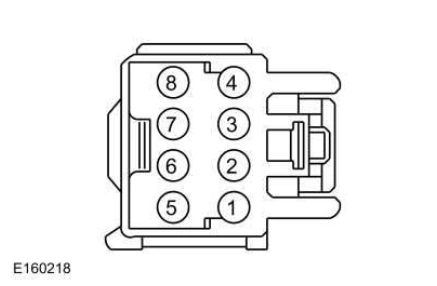

Disconnect: Driver Seat Cushion Blower Motor C3035. Measure the component side resistance between:
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3035-1, Component Side | C3035-2, Component Side |
Is the resistance between 0.9 and 10 ohms?
Yes | REPAIR circuit CHS02 (YE/BU) or RHS02 (BU/OG) for an open or high resistance. GO to AF22 |
|---|---|
No | INSTALL a new cushion blower motor. REFER to: Front Seat Cushion Blower Motor (501-10A Front Seats, Removal and Installation). GO to AF22 |
AF21 CHECK THE SCME (FRONT SEAT CLIMATE CONTROL MODULE) OPERATION
Ignition OFF. Disconnect and inspect all of the SCME connectors. Repair:
corrosion (install new connector or terminals - clean module pins) damaged or bent pins - install new terminals/pins as necessary pushed-out pins - install new pins as necessary
Reconnect the SCME connectors. Make sure they seat and latch correctly.
NOTE: Do not reconnect Driver Side Airbag In-line C345 or Passenger Side Airbag In-line C219 at this time. Reconnect all previously disconnected connectors. Ignition ON. Operate the system and determine if the concern is still present.
Is the concern still present?
Yes | CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new SCME. REFER to: Front Seat Climate Control Module [SCME] (501-10A Front Seats, Removal and Installation). GO to AF22 |
|---|---|
No | The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues. GO to AF22 |
AF22 VERIFY THE SUPPLEMENTAL RESTRAINT SYSTEM (SRS) PROVES OUT SUCCESSFULLY
REFER to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures). Connect: Driver Side Airbag In-line C345. Connect: Passenger Side Airbag In-line C219. Connect all previously disconnected connectors.
REFER to: Supplemental Restraint System (SRS) Repowering (501-20B Supplemental Restraint System, General Procedures).
Did the SRS prove out successfully?
