Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265C-15 | Ground |
Is any voltage present?
Yes | REPAIR the circuit. GO to AG22 |
|---|---|
No | GO to AG11 |
AG11 CHECK THE DRIVER SEAT BACKREST BLOWER CIRCUIT FOR A SHORT TO GROUND
Ignition OFF. Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265C-16 | Ground |
Is the resistance greater than 10,000 ohms?
Yes | GO to AG12 |
|---|---|
No | REPAIR the circuit. GO to AG22 |
AG12 CHECK THE DRIVER SEAT BACKREST BLOWER CIRCUITS FOR AN OPEN
Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265C-16 | C3034-3 | |
C3265C-15 | C3034-4 |
Are the resistances less than 3 ohms?
Yes | GO to AG13 |
|---|---|
No | REPAIR the circuit in question. GO to AG22 |
AG13 CHECK THE DRIVER SEAT BACKREST BLOWER RESISTANCE

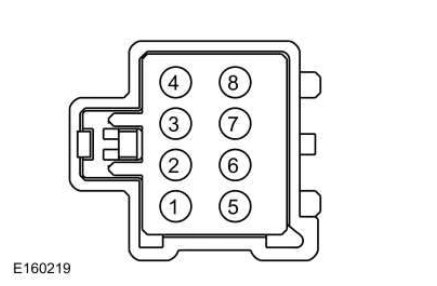

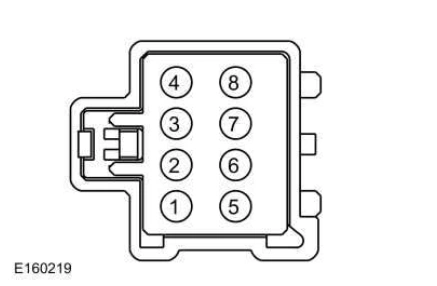

NOTE: The ohmmeter must be connected with the positive lead to pin 3 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure the component side resistance between:
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3034-3, Component Side | C3034-4, Component Side |
Is the resistance between 4,000 and 10,000 ohms?
Yes | GO to AG14 |
|---|
