AG19 CHECK RESISTANCE OF THE DRIVER SEAT BACKREST BLOWER MOTOR AND WIRING
Ignition OFF. Disconnect: SCME C3265A. Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265A-J | Ground | |
C3265A-K | Ground |
Are the resistances between 0.9 and 10 ohms?
Yes | GO to AG21 |
|---|---|
No | GO to AG20 |
AG20 CHECK THE RESISTANCE OF THE DRIVER SEAT BACKREST BLOWER MOTOR

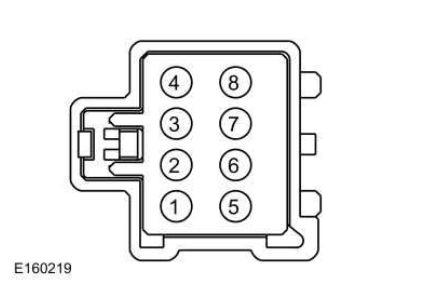

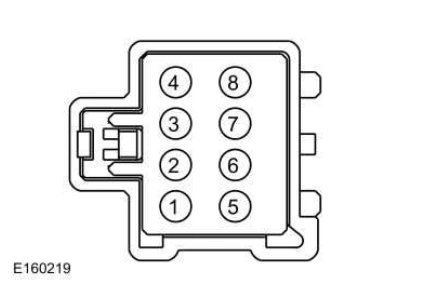

Disconnect: Driver Seat Backrest Blower Motor C3034. Measure the component side resistance between:
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3034-1, Component Side | C3034-2, Component Side |
Is the resistance between 0.9 and 10 ohms?
Yes | REPAIR circuit CHS01 (GY/VT) or RHS01 (WH/VT) for an open or high resistance. GO to AG22 |
|---|---|
No | INSTALL a new backrest blower motor. REFER to: Front Seat Backrest Blower Motor (501-10 Front Seats) . GO to AG22 |
AG21 CHECK THE SCME (FRONT SEAT CLIMATE CONTROL MODULE) OPERATION
Ignition OFF. Disconnect and inspect all of the SCME connectors. Repair:
corrosion (install new connector or terminals - clean module pins) damaged or bent pins - install new terminals/pins as necessary pushed-out pins - install new pins as necessary
Reconnect the SCME connectors. Make sure they seat and latch correctly.
NOTE: Do not reconnect Driver Side Airbag In-line C345 or Passenger Side Airbag In-line C219 at this time. Reconnect all previously disconnected connectors. Ignition ON. Operate the system and determine if the concern is still present.
Is the concern still present?
Yes | CHECK OASIS for any applicable Technical Service Bulletins (TSBs). If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no Technical Service Bulletins (TSBs) address this concern, INSTALL a new SCME. REFER to: Front Seat Climate Control Module [SCME] (501-10A Front Seats, Removal and Installation). GO to AG22 |
|---|
