2016 workshop · Body & Paint

Driver Front Seat Module (DSM)

501-10A Front Seats

2016 MustangReference 1,108 / 6,619HTML edition
← Chapter contentsProcedure contents

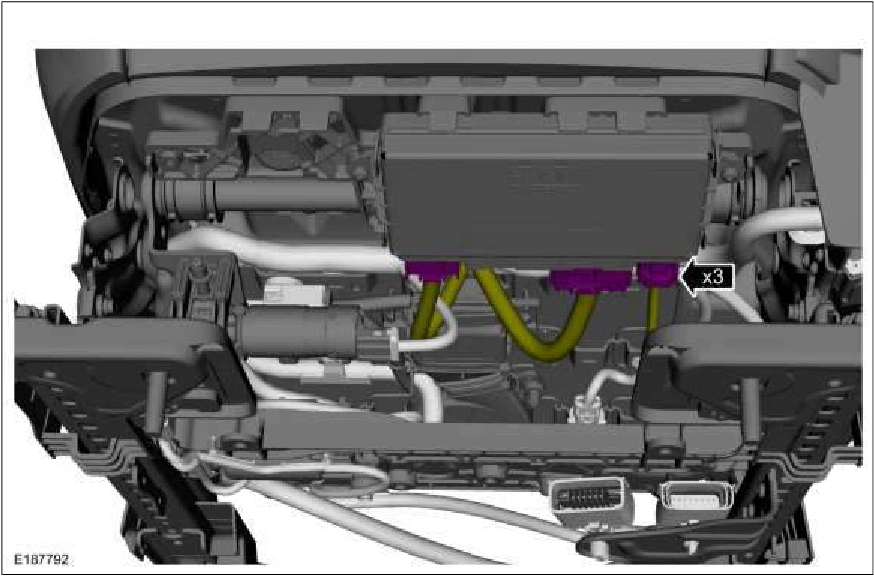

Driver Front Seat Module (DSM) — original illustration 1, reference 1108Original colors & callouts · Select to enlarge

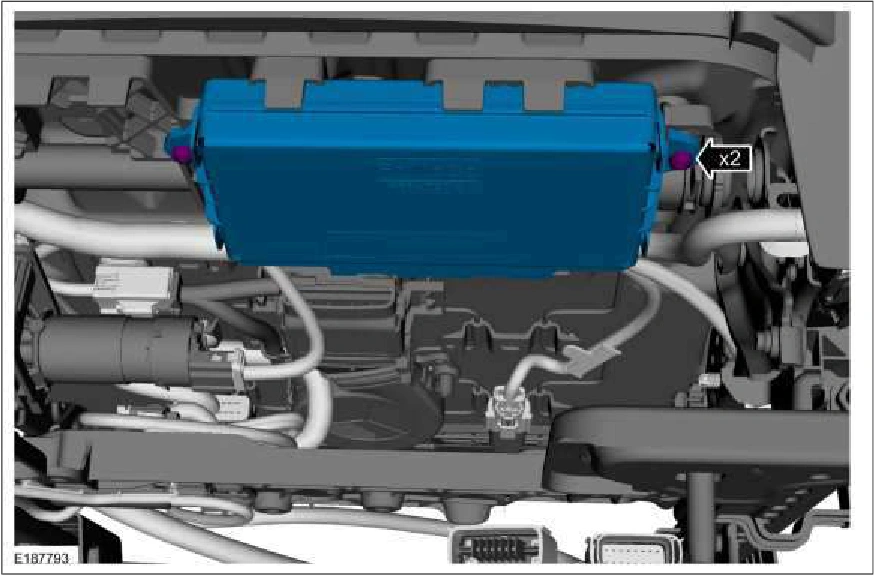

4. Remove the screws and the DSM. Torque : 18 lb.in (2 Nm)

Driver Front Seat Module (DSM) — original illustration 2, reference 1108Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. NOTE: This step is only necessary when installing a new component.

Using a diagnostic scan tool, complete the PMI process for the DSM following the on-screen instructions.

3. NOTE: This step is only necessary when installing a new component.

Operate the seat in all directions through the full range of travel to set soft stops and avoid a premature

Source reference 1108
