501-10A Front Seats 2016 Mustang

Removal and Installation Procedure revision date: 04/27/2015

Front Head Restraint Guide Sleeve

Special Tool(s) / General Equipment

Flat Headed Screw Driver

Removal

NOTE: Typical head restraint guide sleeve shown, others similar.

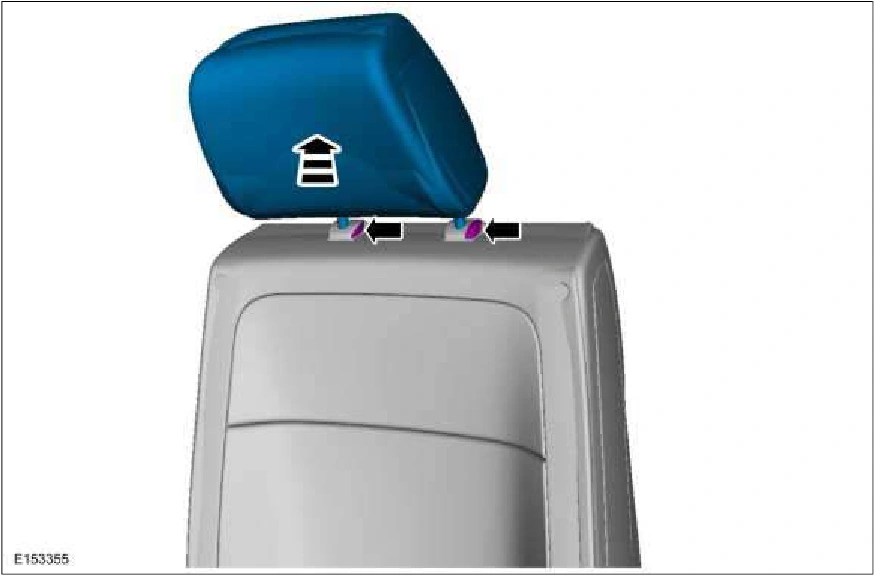

1. Depress the locking tabs and remove the head restraint.

Front Head Restraint Guide Sleeve — original illustration 1, reference 1110Original colors & callouts · Select to enlarge

2. NOTE: Seat backrest cushion removed for clarity.

Remove the headrest restraint guide sleeves. Use the General Equipment: Flat Headed Screw Driver
