Front Seat

501-10A Front Seats 2016 Mustang

Removal and Installation Procedure revision date: 04/27/2015

Base Part Number: 63100

Removal

NOTE: LHD driver seat shown, all others similar.

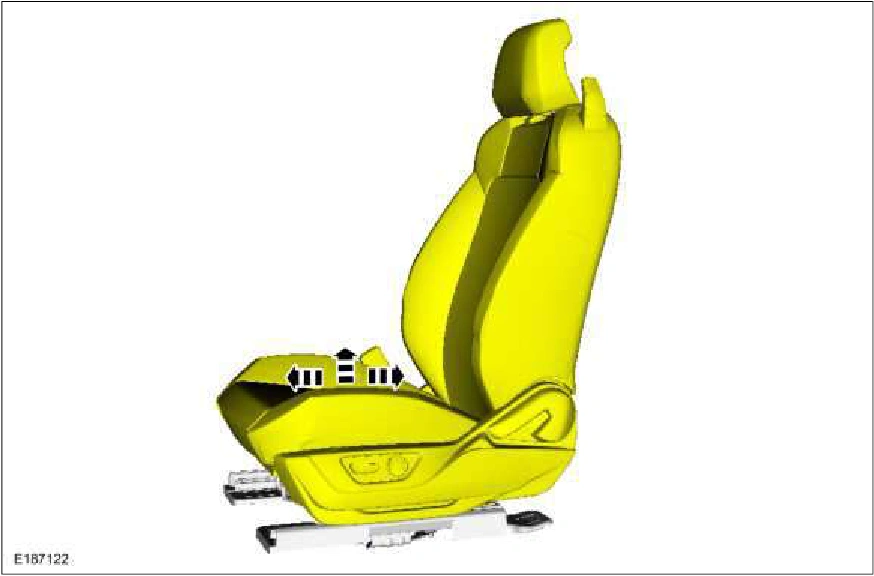

1. Position the seat to access the front seat bolts. If a power seat cannot be positioned horizontally to access the front seat bolts, diagnose the inoperative horizontal seat track motor. Refer to: Front Seats (501-10A Front Seats, Diagnosis and Testing).

Front Seat — original illustration 1, reference 1113Original colors & callouts · Select to enlarge

2. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).

3. Remove the front seat shield bolt caps.
