Front Seat — 2016 workshop reference 1114

Front Seat — original illustration 1, reference 1114Original colors & callouts · Select to enlarge

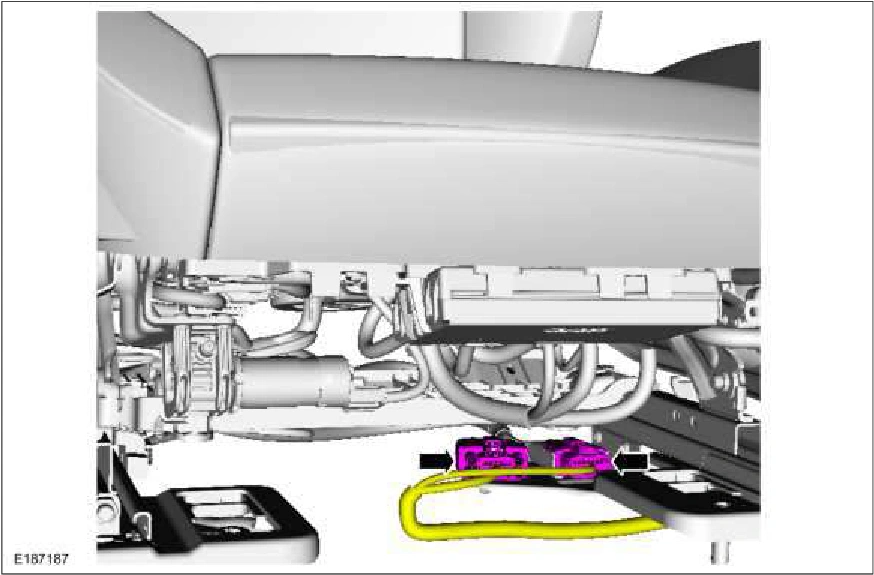

4. Disconnect the front seat electrical connector(s) and position the wire harness aside.

Front Seat — original illustration 2, reference 1114Original colors & callouts · Select to enlarge

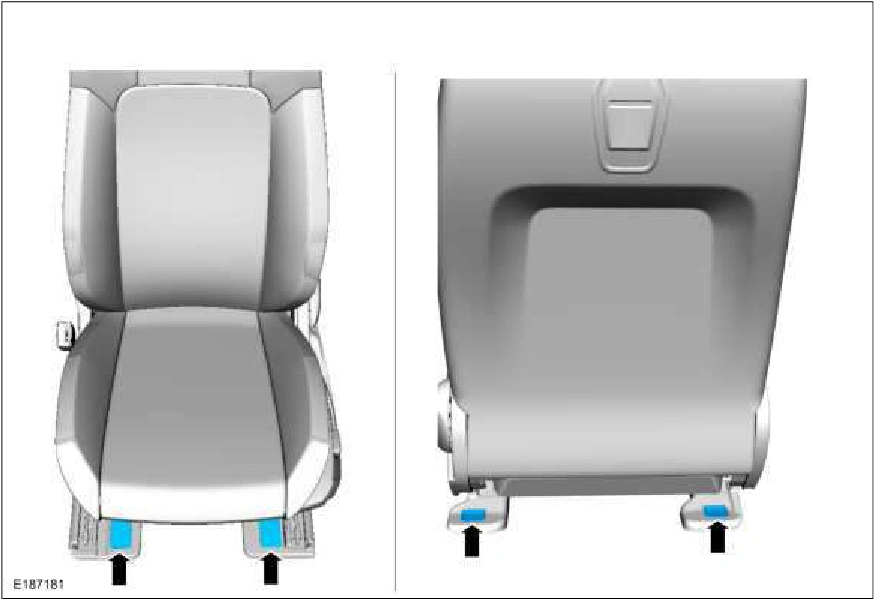

5. NOTE: Follow the unique instructions or graphic for this step in the installation.

Remove the bolts and the front seat.
