Front Head Restraint Guide Sleeve

501-10A Front Seats

2016 MustangReference 1,111 / 6,619HTML edition
← Chapter contentsProcedure contents

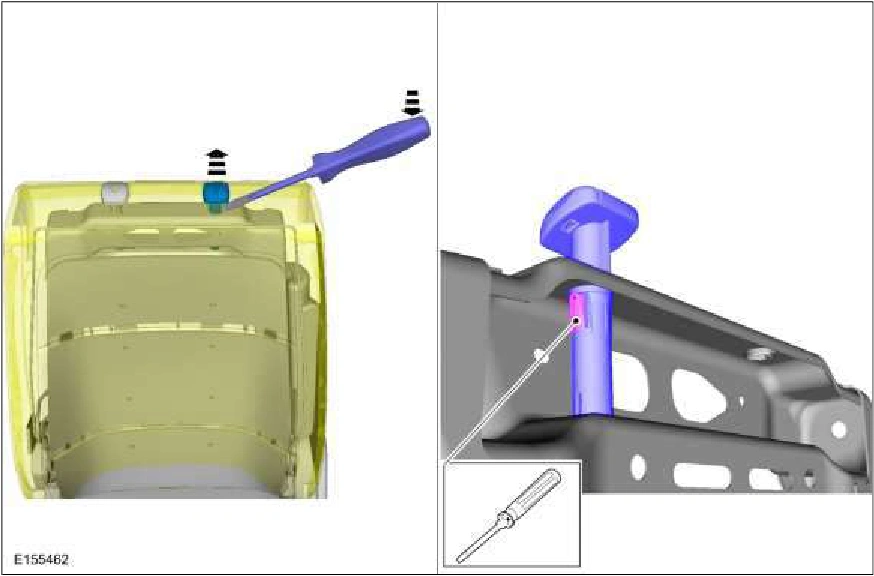

Front Head Restraint Guide Sleeve — original illustration 1, reference 1111Original colors & callouts · Select to enlarge

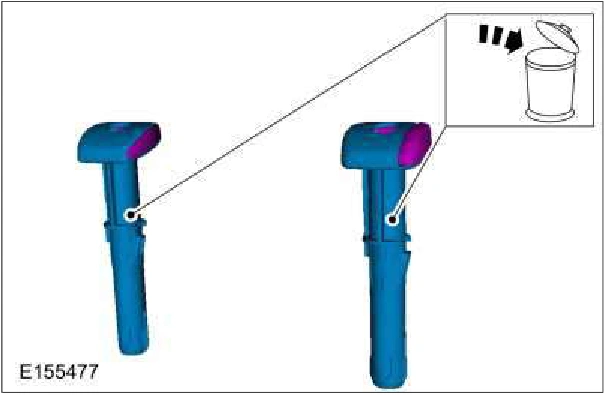

3. Discard the head restraint guide sleeves.

Front Head Restraint Guide Sleeve — original illustration 2, reference 1111Original colors & callouts · Select to enlarge

Installation

NOTICE: Always install new head restraint guide sleeves. Difficult adjustment of the head restraint may occur. Failure to follow these instructions may result in component failure.

NOTICE: The head restraint guide sleeves are not interchangeable. Failure to install the correct head restraint guide sleeve at the correct position may result in component failure.

1. Install the new head restraint guide sleeves.
