501-10A Front Seats 2016 Mustang

Removal and Installation Procedure revision date: 04/27/2015

Front Seat Backrest

Removal

NOTE: LHD driver seat shown, all others similar.

NOTE: Removal steps in this procedure may contain installation details.

All seats

1. Remove the front seat. Refer to: Front Seat (501-10A Front Seats, Removal and Installation).

2. Remove the screws and the recline cover.

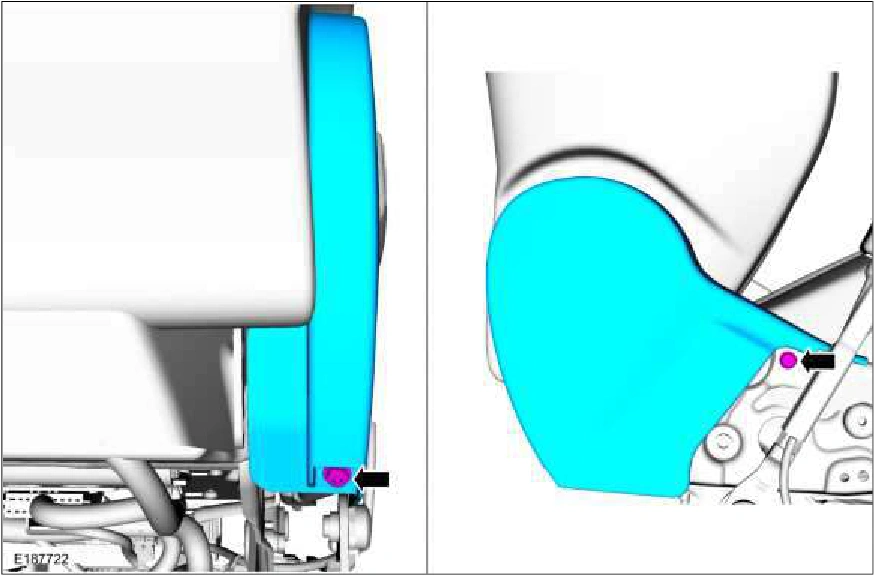

Front Seat Backrest — original illustration 1, reference 1117Original colors & callouts · Select to enlarge

3. Release the retaining clip and remove the front seat recline handle.

Source reference 1117
