Front Seat Backrest — 2016 workshop reference 1119

Front Seat Backrest — original illustration 1, reference 1119Original colors & callouts · Select to enlarge

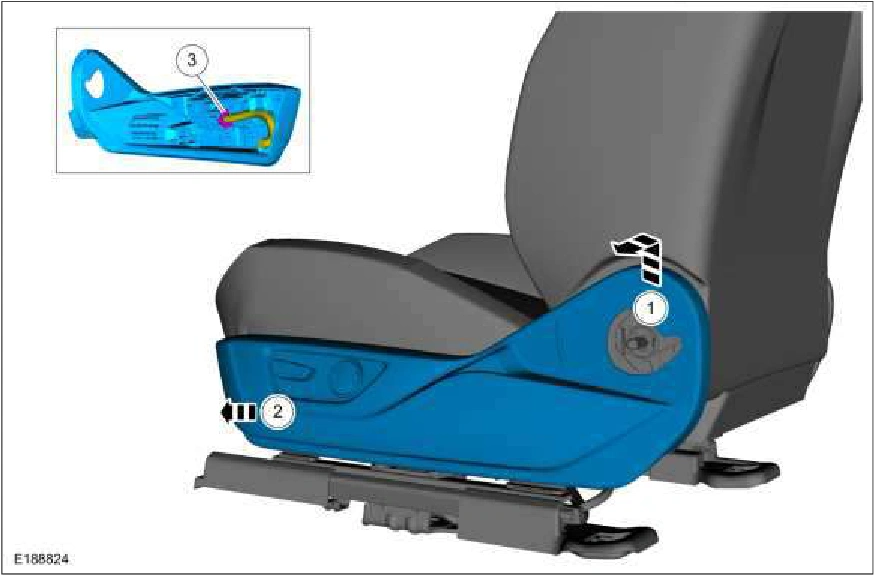

6. Remove the side shield.

1. Lift up on the rear of the side shield and pull outward.

2. Push the side shield forward.

3. If equipped, disconnect the electrical connector.

Front Seat Backrest — original illustration 2, reference 1119Original colors & callouts · Select to enlarge

Passenger manual seat

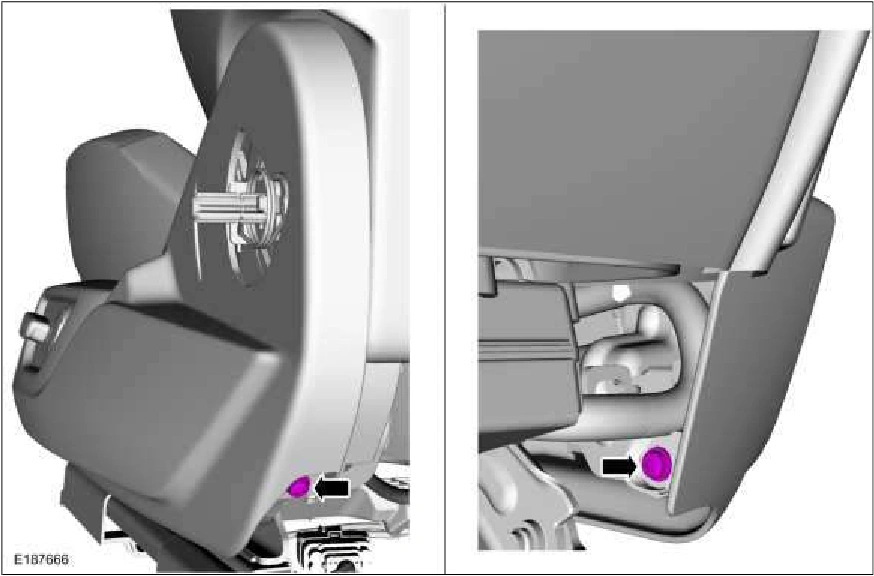

7. Remove the side shield screws.
