Front Seat Backrest — 2016 workshop reference 1120

Front Seat Backrest — original illustration 1, reference 1120Original colors & callouts · Select to enlarge

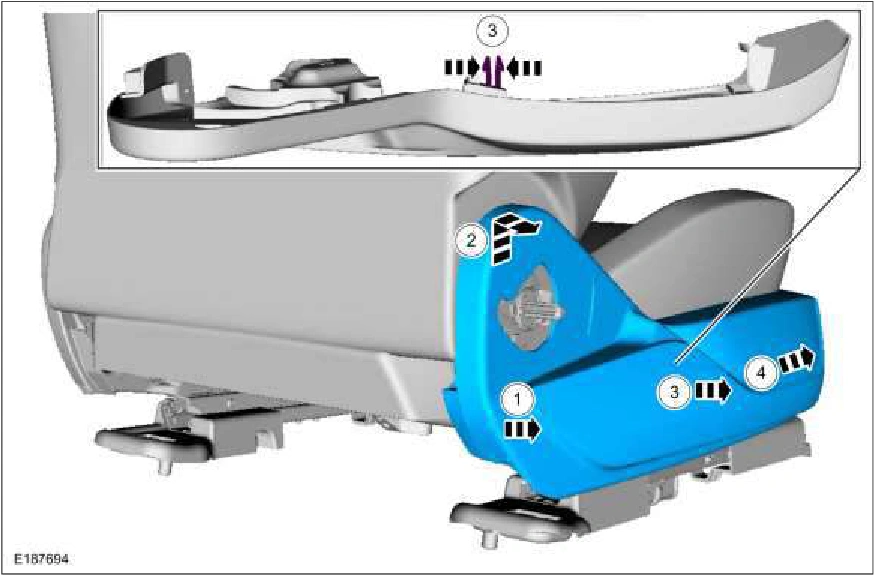

8. Remove the side shield.

1. Pull the rear of the side shield out.

2. Firmly grasp the side shield, lift up and out, separating the side shield from the recliner bracket.

3. From underneath, squeeze the retainers together and pull out on the side shield.

4. Slide the side shield forward.

Front Seat Backrest — original illustration 2, reference 1120Original colors & callouts · Select to enlarge

All seats

9. Position the front seat backrest cover.

1. Release the wire harness electrical connector retainer(s).

2. Detach the front seat backrest cover straps from the seat cushion frame.

3. Position the front seat backrest cover aside.
