Front Seat Backrest Blower Motor

501-10A Front Seats

2016 MustangReference 1,123 / 6,619HTML edition
← Chapter contentsProcedure contents

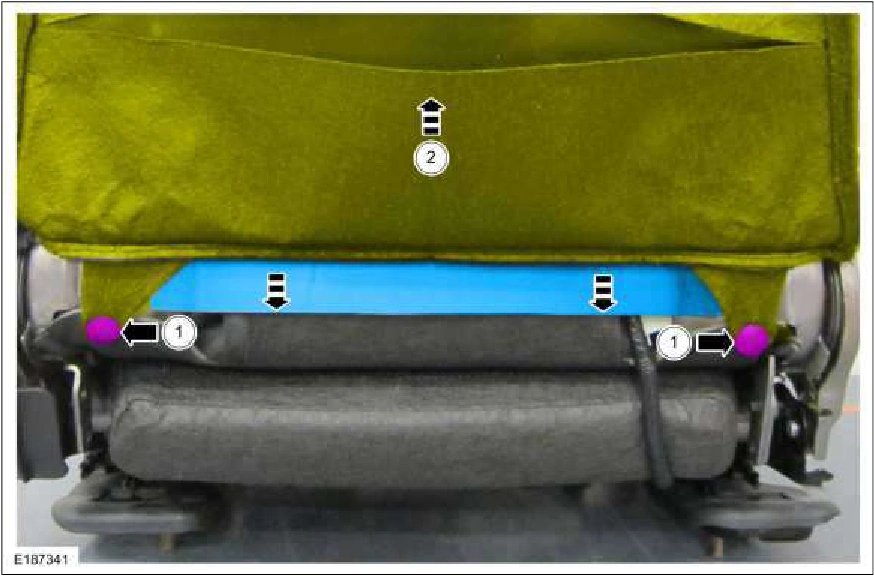

Front Seat Backrest Blower Motor — original illustration 1, reference 1123Original colors & callouts · Select to enlarge

4. Position the front seat backrest cover.

1. Release the J-clip.

2. Position the backrest cover from between the seat cushion and backrest cushion.

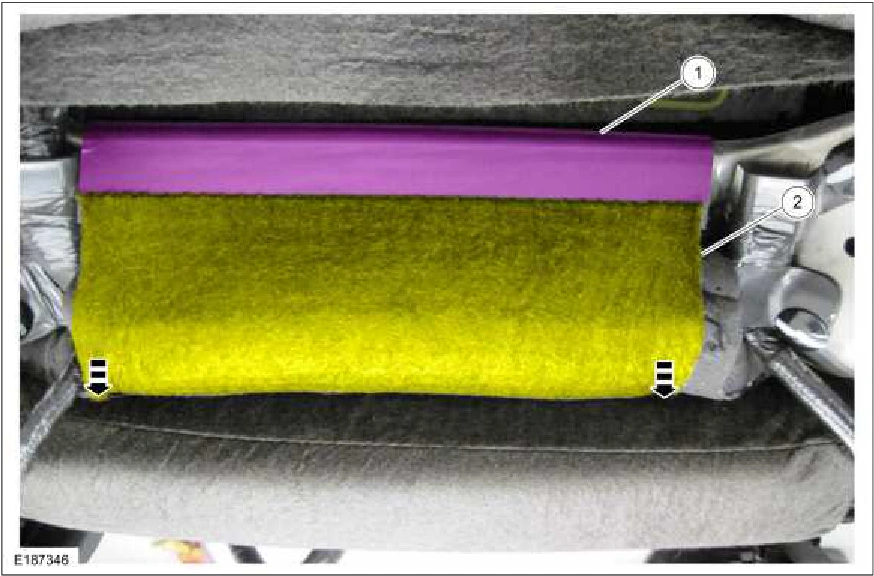

Front Seat Backrest Blower Motor — original illustration 2, reference 1123Original colors & callouts · Select to enlarge

5. NOTICE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or

the hook-and-loop strips may be torn from the seat backrest foam pad.

Release the hook-and-loop strips and position the backrest cover upward.
