Front Seat Backrest Blower Motor — 2016 workshop reference 1125

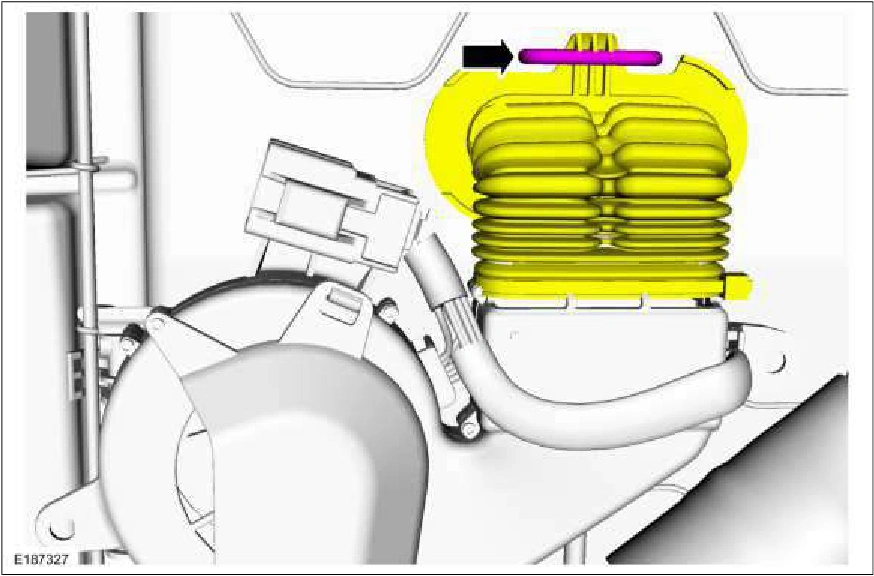

Front Seat Backrest Blower Motor — original illustration 1, reference 1125Original colors & callouts · Select to enlarge

8. NOTE: The backrest foam has been removed for clarity.

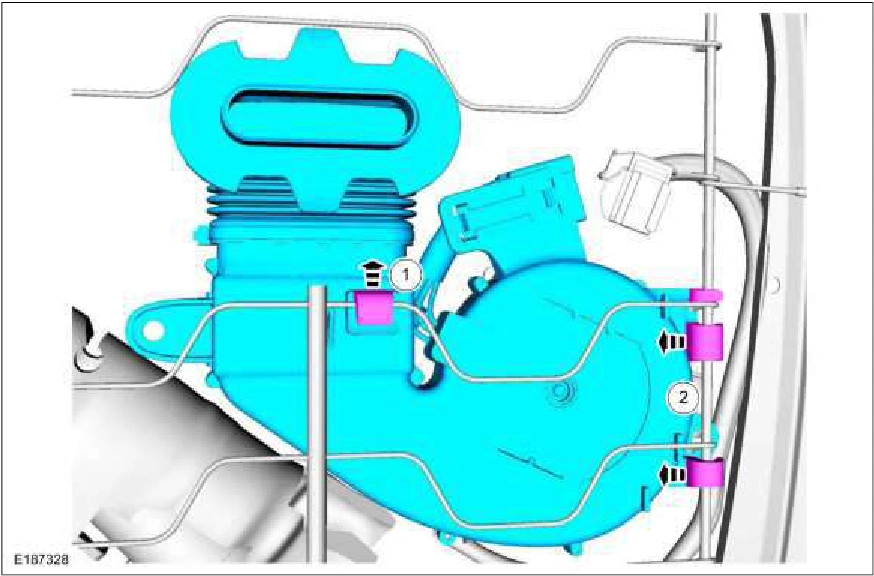

Remove the blower motor.

1. Release the blower motor horizontal retainer.

2. Release the blower motor vertical retainers.

Front Seat Backrest Blower Motor — original illustration 2, reference 1125Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 1125
