Front Seat Backrest Cover — 2016 workshop reference 1127

Torque : 106 lb.in (12 Nm)

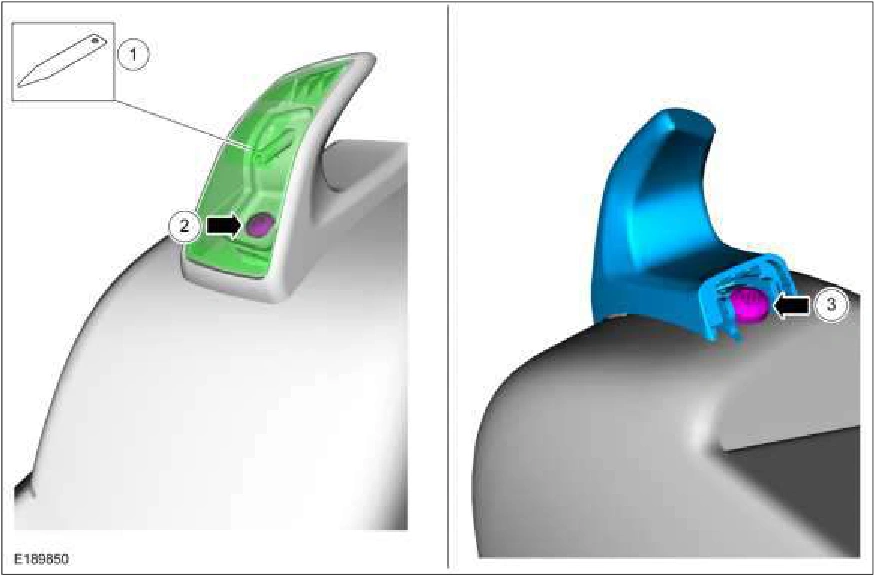

Front Seat Backrest Cover — original illustration 1, reference 1127Original colors & callouts · Select to enlarge

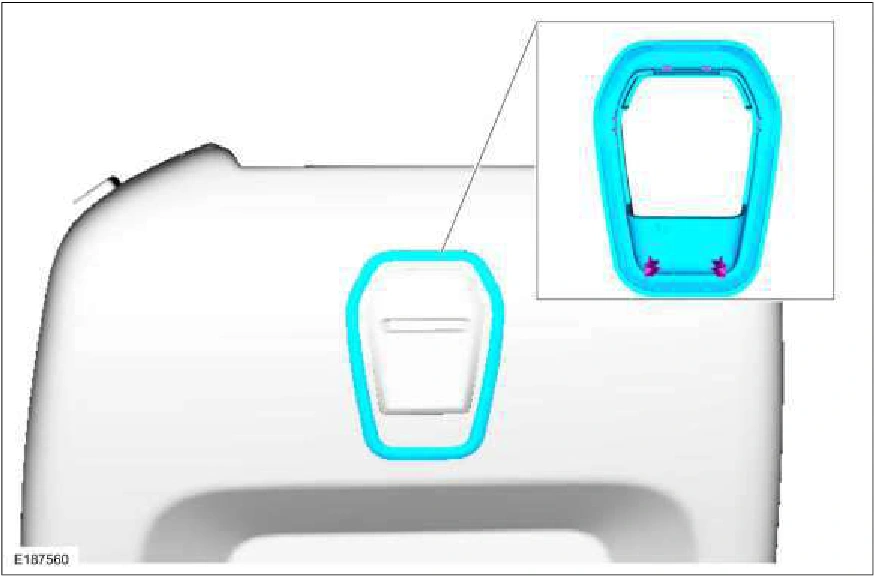

5. Remove the seat release handle bezel.

Front Seat Backrest Cover — original illustration 2, reference 1127Original colors & callouts · Select to enlarge

6. Position the front seat backrest cover.

1. Releases the wire harness electrical connector retainer(s).

2. Detach the front seat backrest cover straps.

3. Position the front seat backrest cover aside.
