Front Seat Backrest Cover — 2016 workshop reference 1130

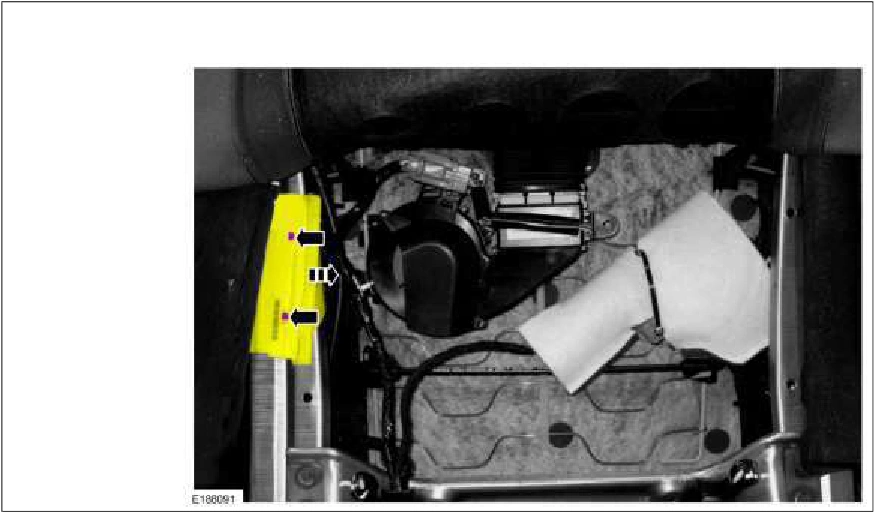

Front Seat Backrest Cover — original illustration 1, reference 1130Original colors & callouts · Select to enlarge

11. Pull the side airbag deployment chute through the backrest foam.

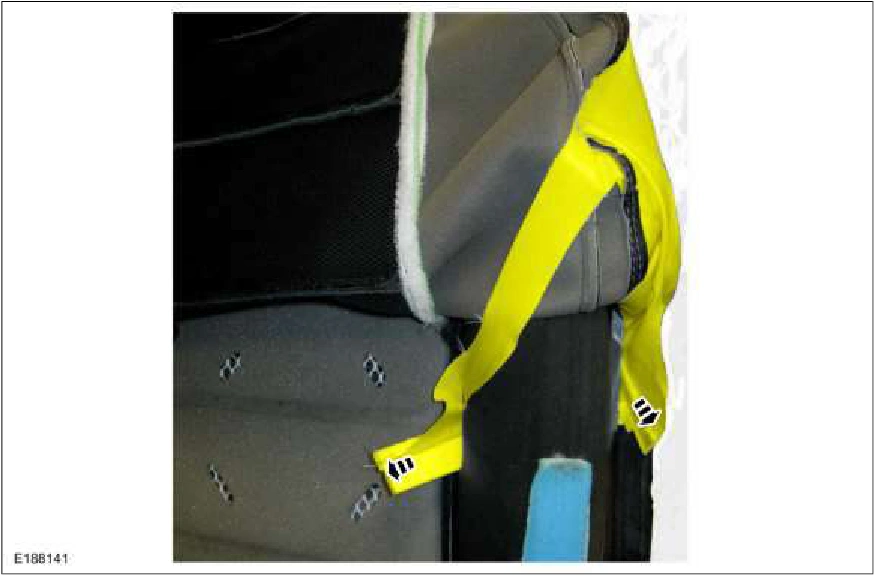

Front Seat Backrest Cover — original illustration 2, reference 1130Original colors & callouts · Select to enlarge

12. Release the backrest cover J-clips and position the backrest cover upward.
