Front Seat Backrest Cover — 2016 workshop reference 1132

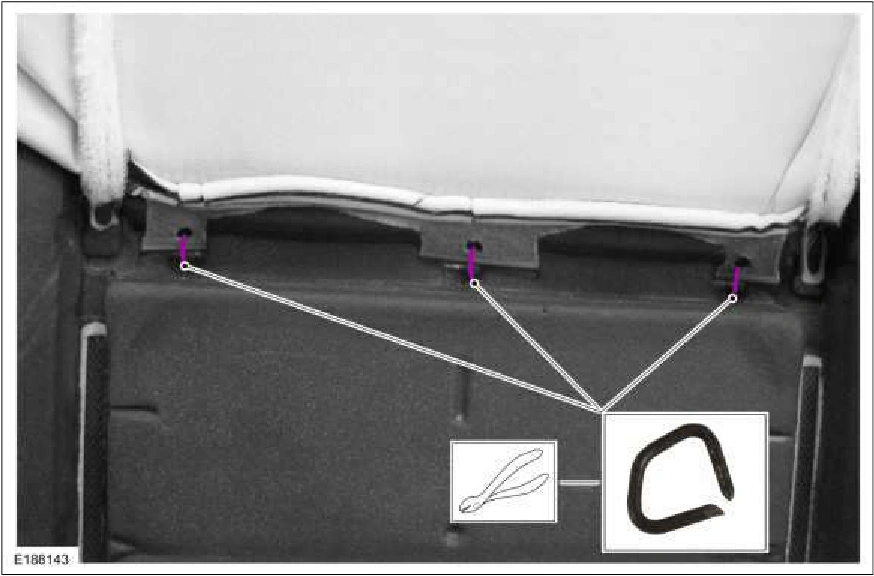

Front Seat Backrest Cover — original illustration 1, reference 1132Original colors & callouts · Select to enlarge

15. If equipped, position the safety belt strap as needed.

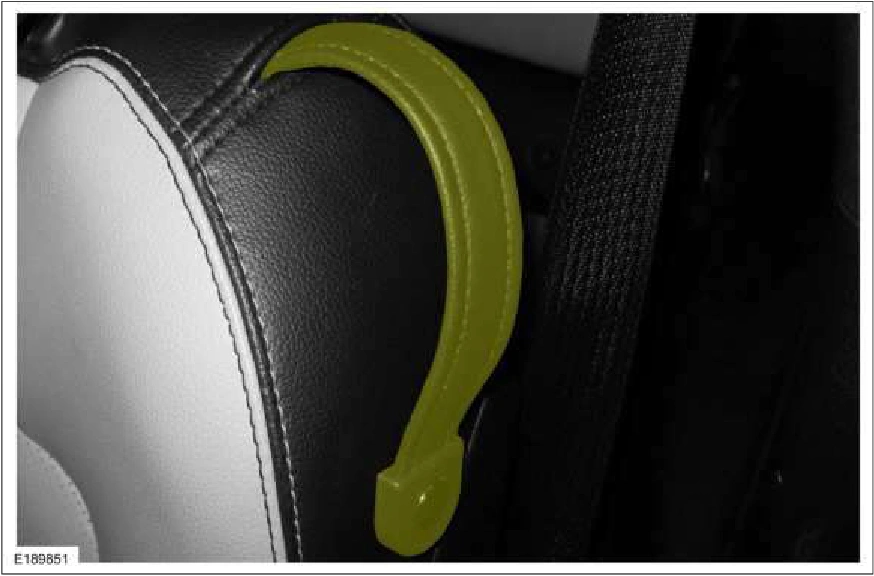

Front Seat Backrest Cover — original illustration 2, reference 1132Original colors & callouts · Select to enlarge

16. NOTICE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or

the hook-and-loop strips may be torn from the seat backrest foam pad.

Release the hook-and-loop and remove the backrest cover.

Source reference 1132
