Front Seat Backrest Cover — 2016 workshop reference 1133

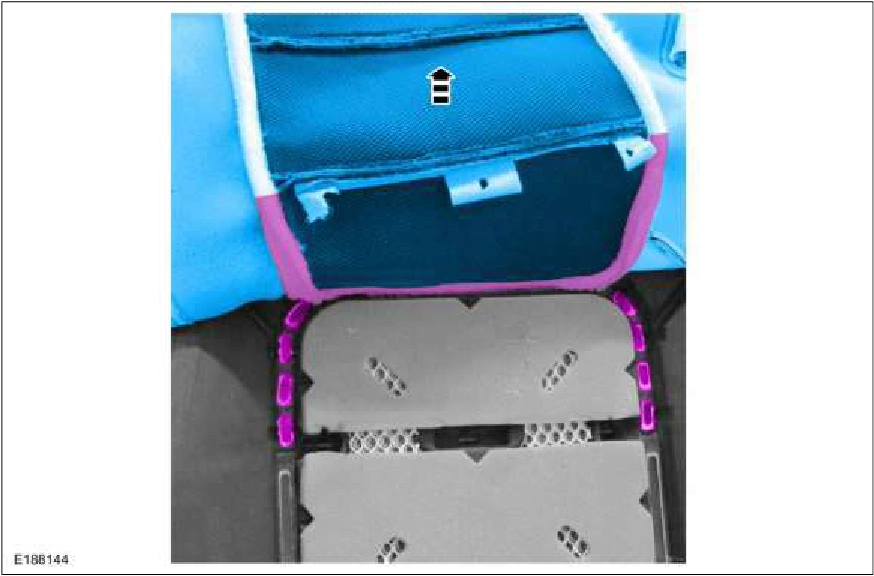

Front Seat Backrest Cover — original illustration 1, reference 1133Original colors & callouts · Select to enlarge

Installation

WARNING: Inspect the seat side airbag, airbag cavity, mounting surface and deployment chute for damage or the presence of foreign material. Remove all foreign material. Install a new side airbag if it is damaged. Install a new deployment chute if the deployment chute is damaged. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.

1. To install, reverse the procedure.

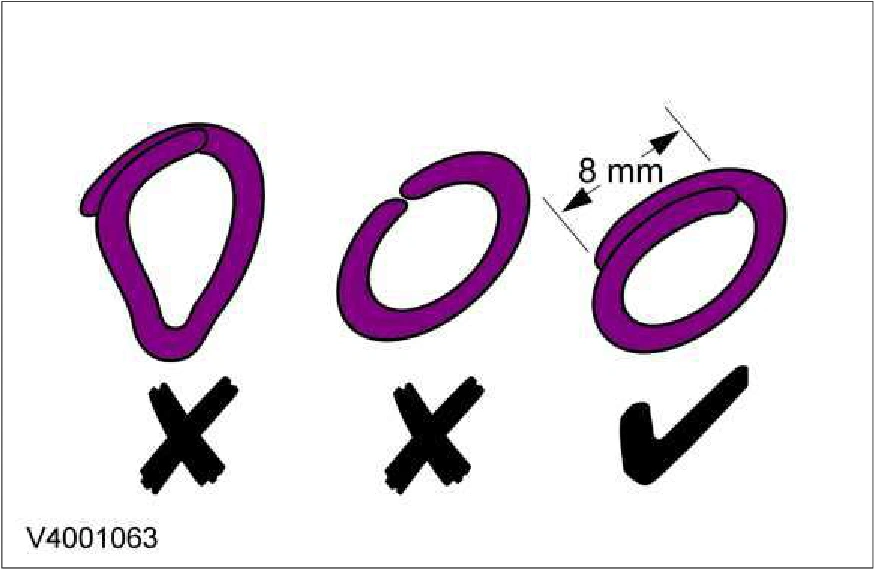

2. Use the General Equipment: Hog Ring Plier

Front Seat Backrest Cover — original illustration 2, reference 1133Original colors & callouts · Select to enlarge
