Front Seat Backrest Cover - Vehicles With: Recaro Seats

501-10A Front Seats

2016 MustangReference 1,136 / 6,619HTML edition

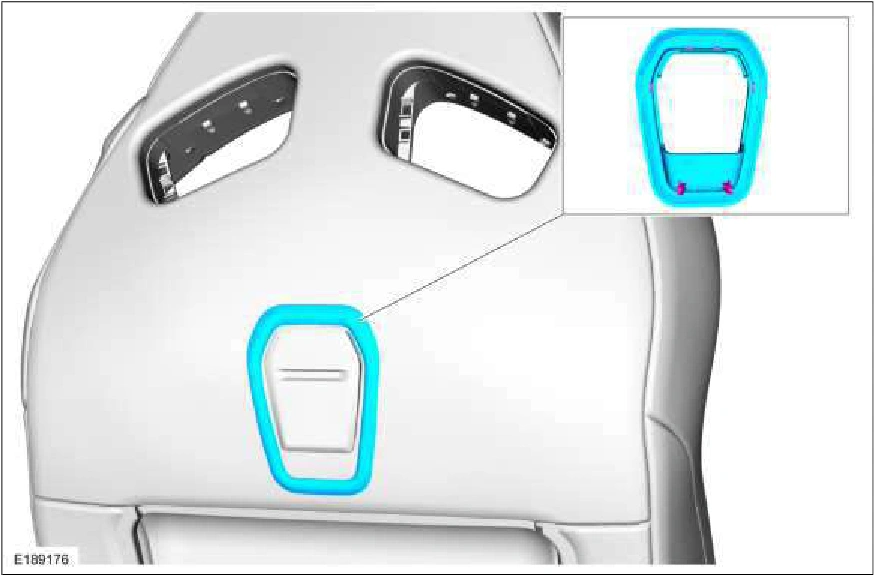

Front Seat Backrest Cover - Vehicles With: Recaro Seats — original illustration 1, reference 1136Original colors & callouts · Select to enlarge

6. Remove the side airbag. Refer to: Side Airbag - Vehicles With: Recaro Seats (501-20B Supplemental Restraint System, Removal and Installation).

7. Detach the J-clip from the backrest frame.

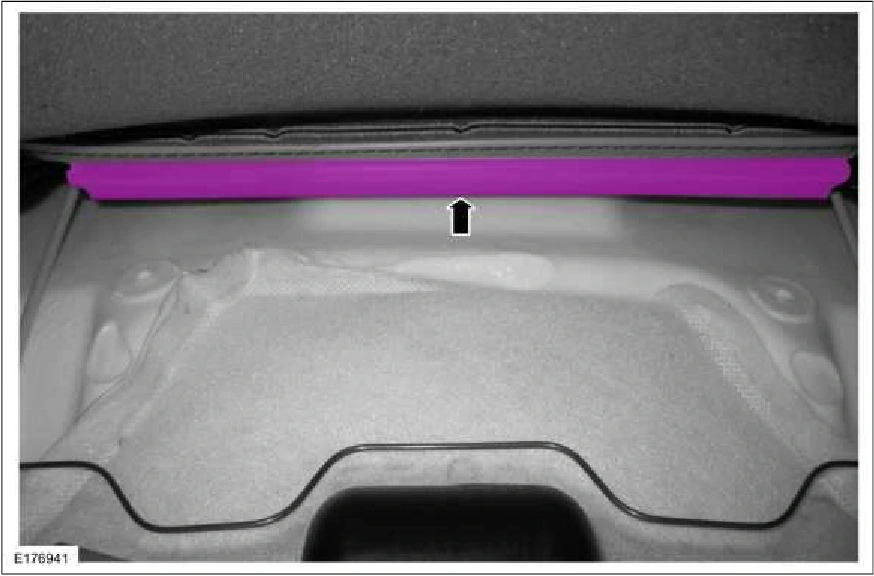

Front Seat Backrest Cover - Vehicles With: Recaro Seats — original illustration 2, reference 1136Original colors & callouts · Select to enlarge

8. Release the backrest cover from the backrest carrier hooks.
