Front Seat Backrest Cover - Vehicles With: Recaro Seats

Base Part Number: 64416

Removal

WARNING: Front seat backrest trim covers installed on seats equipped with seat side airbags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LHD driver seat shown, all others similar.

NOTE: Recaro seat shown, GT 350 Recaro seat similar.

All

1. Remove the front seat. Refer to: Front Seat (501-10A Front Seats, Removal and Installation).

2. If equipped. Remove the safety belt guide.

1. Remove the cover.

2. Remove the bolt.

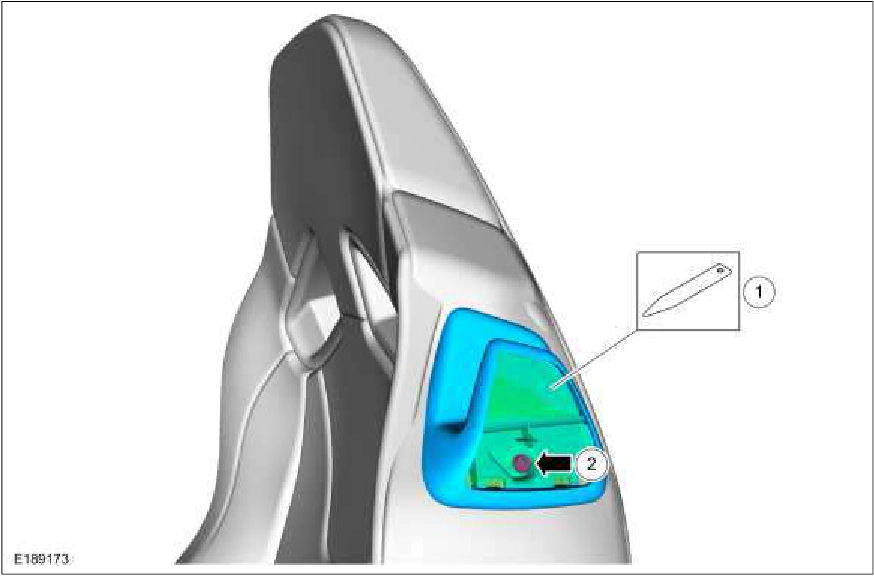

Front Seat Backrest Cover - Vehicles With: Recaro Seats — original illustration 1, reference 1134Original colors & callouts · Select to enlarge

3. NOTE: Inspect the pass-thru bezels for damage, replace as necessary.

Remove the front pass-thru bezels.
