Front Seat Backrest Cover - Vehicles With: Recaro Seats

501-10A Front Seats

2016 MustangReference 1,135 / 6,619HTML edition

← Chapter contents Procedure contents

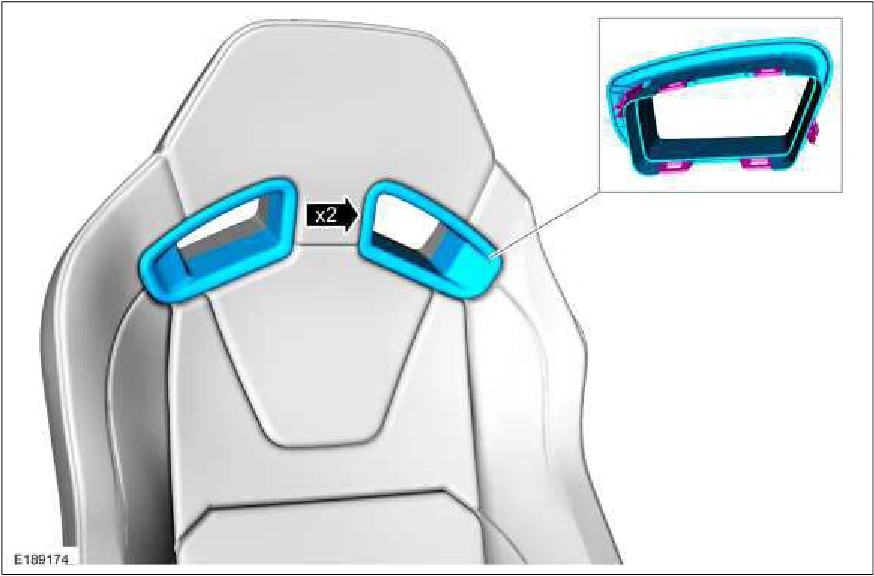

Front Seat Backrest Cover - Vehicles With: Recaro Seats — original illustration 1, reference 1135Original colors & callouts · Select to enlarge

4. NOTE: Inspect the pass-thru bezels for damage, replace as necessary.

Remove the rear pass-thru bezels.

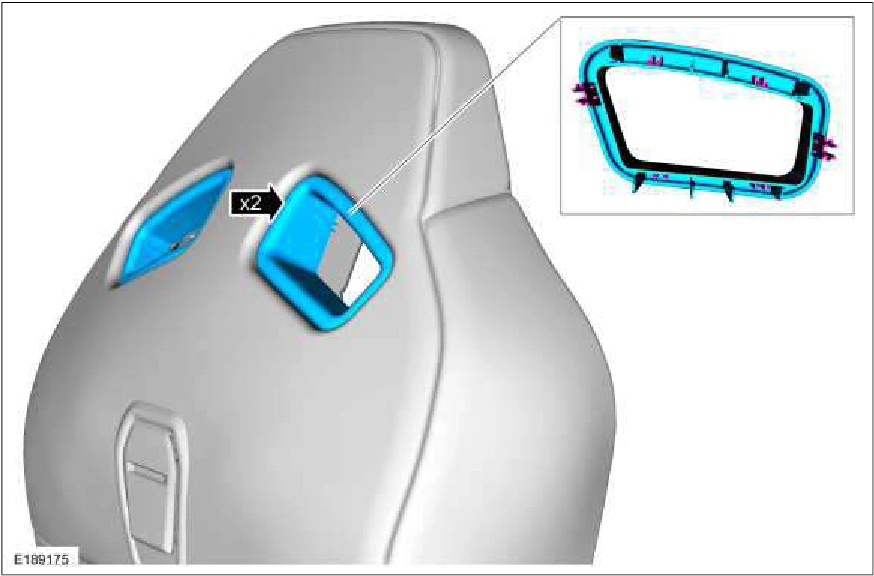

Front Seat Backrest Cover - Vehicles With: Recaro Seats — original illustration 2, reference 1135Original colors & callouts · Select to enlarge

5. Remove the backrest release handle bezel.
