Front Seat Backrest Cover — 2016 workshop reference 1129

Front Seat Backrest Cover — original illustration 1, reference 1129Original colors & callouts · Select to enlarge

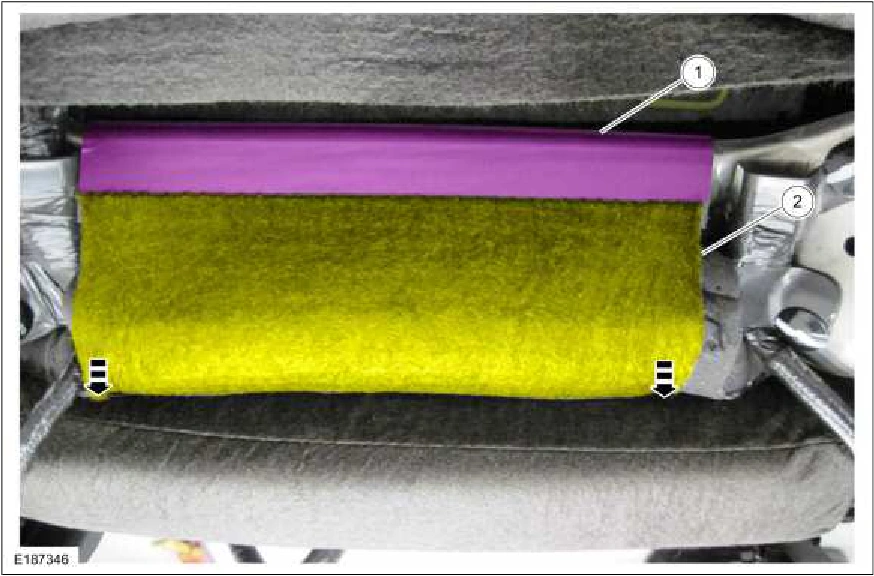

9. NOTICE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or

the hook-and-loop strips may be torn from the seat backrest foam pad.

Release the hook-and-loop strips and position the backrest cover upward.

Front Seat Backrest Cover — original illustration 2, reference 1129Original colors & callouts · Select to enlarge

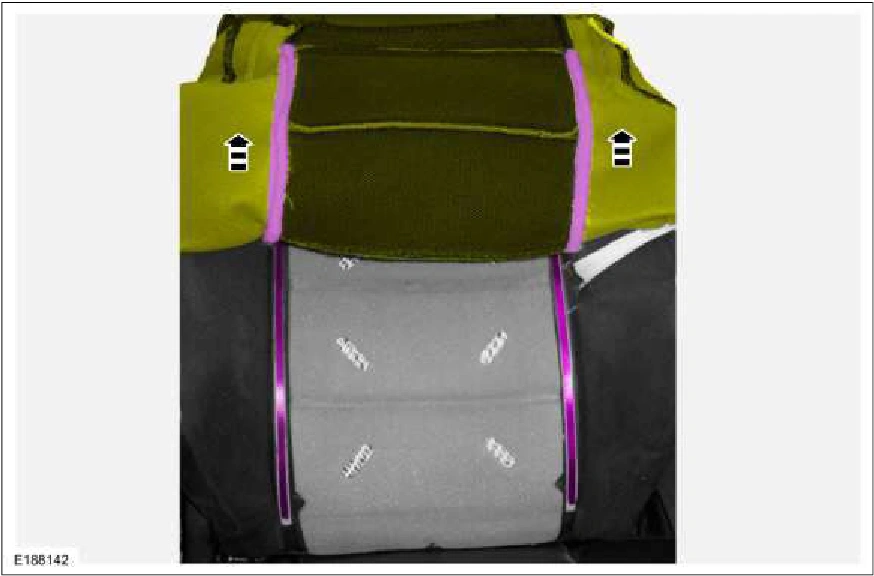

10. Detach the side airbag deployment chute retainers and position aside.
