Front Seat Backrest Blower Motor — 2016 workshop reference 1124

Front Seat Backrest Blower Motor — original illustration 1, reference 1124Original colors & callouts · Select to enlarge

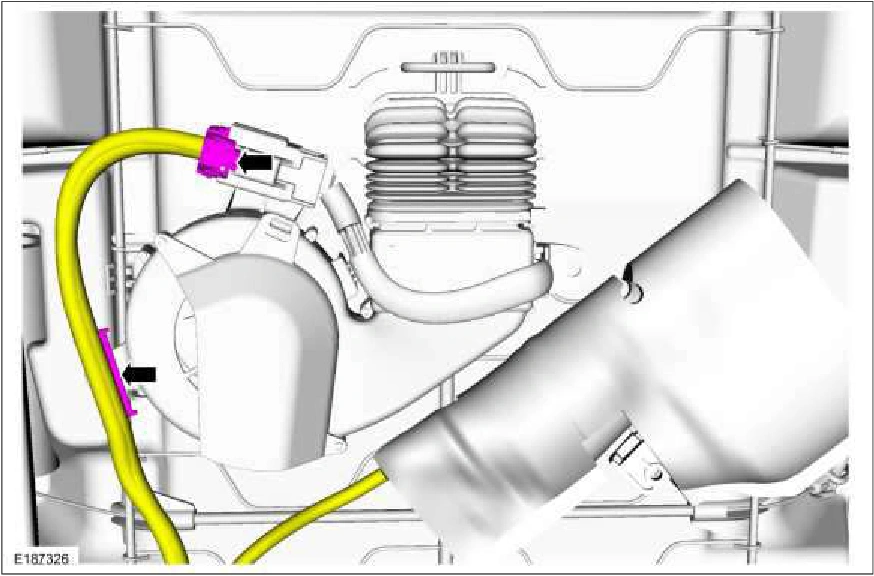

6. Release the wire harness retainer and disconnect the blower motor electrical connector.

Front Seat Backrest Blower Motor — original illustration 2, reference 1124Original colors & callouts · Select to enlarge

7. Disconnect the blower motor manifold from the backrest cushion.
