2016 workshop · Body & Paint

Front Seat

501-10A Front Seats

2016 MustangReference 1,115 / 6,619HTML edition
← Chapter contentsProcedure contents

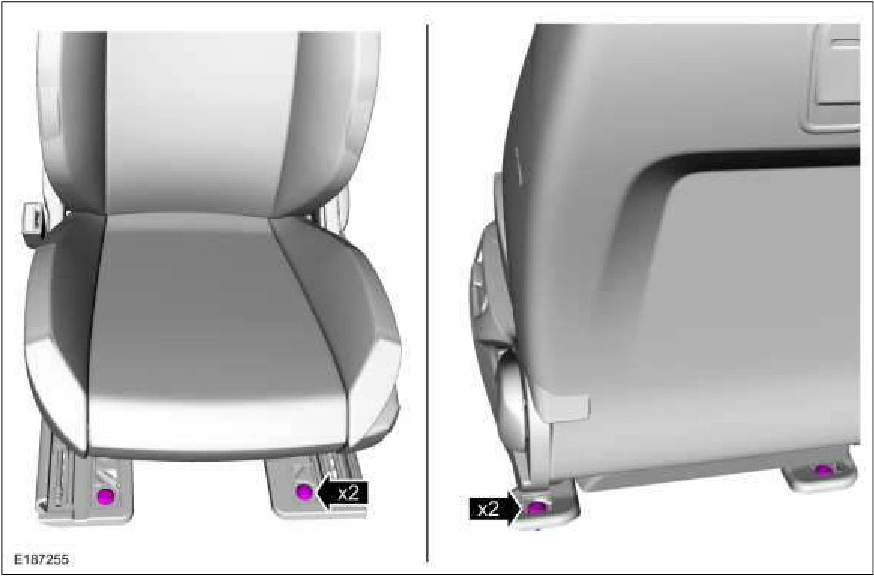

Front Seat — original illustration 1, reference 1115Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

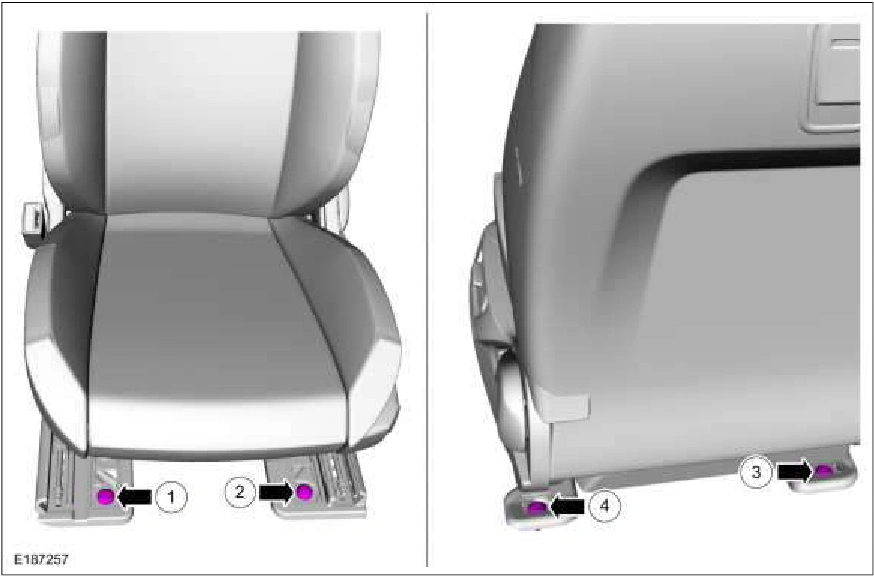

2. Install the front seat bolts in the following sequence.

1. Install the front inboard bolt. Torque : 35 lb.ft (47 Nm)

2. Install the front outboard bolt. Torque : 35 lb.ft (47 Nm)

3. Install the rear inboard bolt. Torque : 35 lb.ft (47 Nm)

4. Install the rear outboard bolt. Torque : 35 lb.ft (47 Nm)

Front Seat — original illustration 2, reference 1115Original colors & callouts · Select to enlarge
